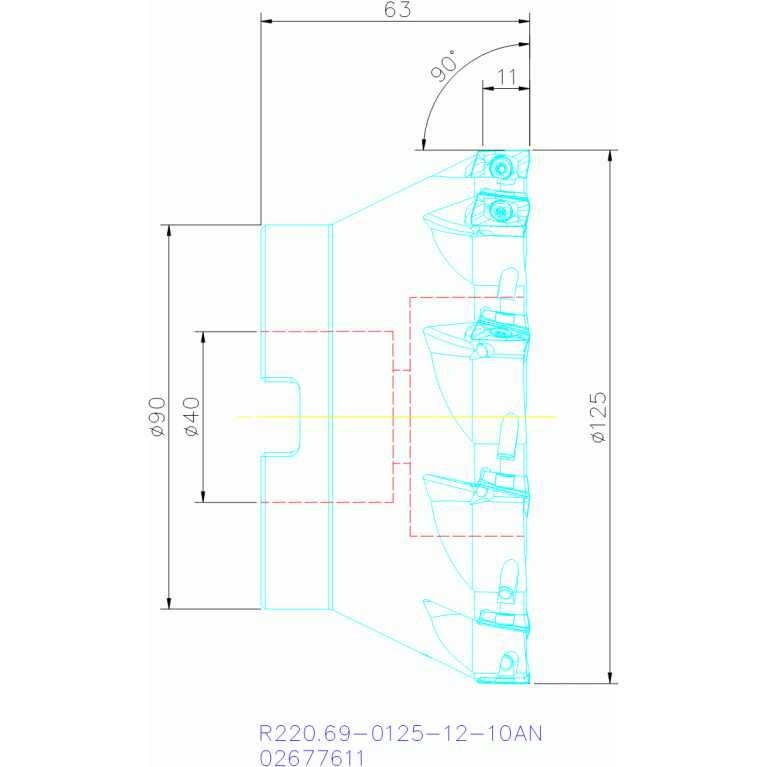

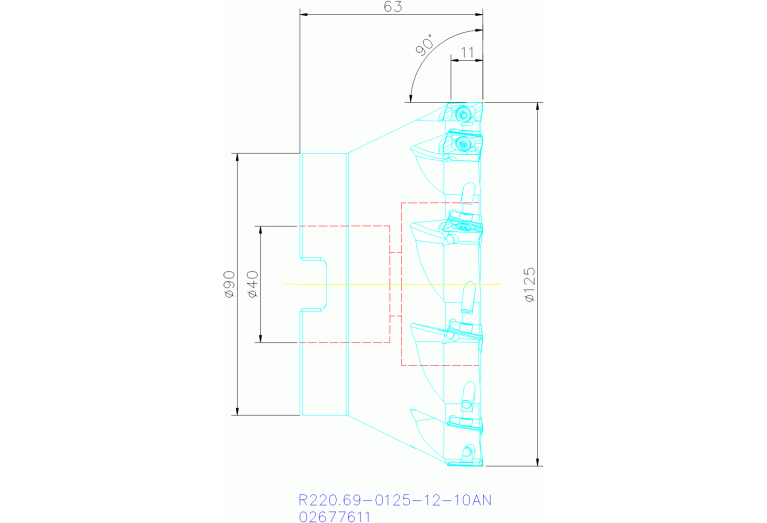

R220.69-0125-12-10AN
R220.69-0125-12-10AN
Артикул:
02677611
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
11 mm
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
90 mm
DIN
FDA04002210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
R220.69-0125-12-10AN
GAMF Rake angle radial
-4.1 Degree
GAMP Rake angle axial
8 Degree
ID Technical product number
02677611
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002210
Name Identifying order number
R220.69-0125-12-10AN
OAL Overall length
63 mm
RMPX Ramping angle maximum
0.5 Degree
RPMX Rotational speed maximum
9200 1/min
Working process
No working processes available
WT Weight of item
3.161 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
