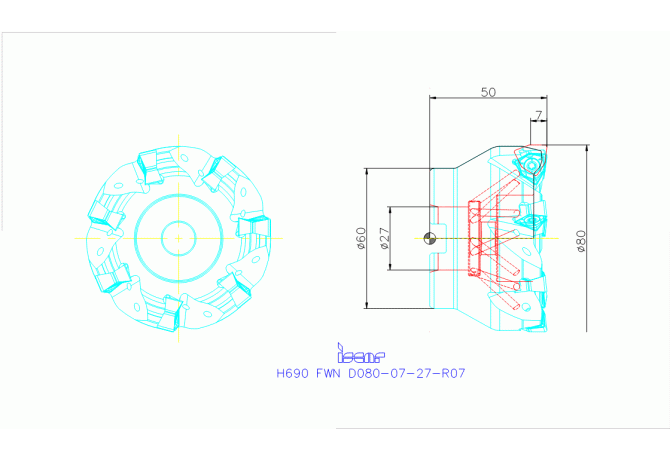

H690 FWN D080-07-27-R07

Артикул: 3106615

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

80 mm

DCP Data chip provision

0 - Without data chip

DHUB Hub diameter

60 mm

DIN

FDA02700215

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° Face Mills Carrying H690 WNMU 0705 Double-Sided Trigonal Inserts with 6 Helical Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3106615

Interface codes

J6 / J61

ISO

FDA02G2700H$07

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

FDA02G2700H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02700215

Name Identifying order number

H690 FWN D080-07-27-R07

OAL Overall length

50 mm

RMPX Ramping angle maximum

1 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

1 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
