Главная Каталог продукции Toolunited 10 308-02 - Shoulder milling cutter FMP02-050-A22-SE12-03

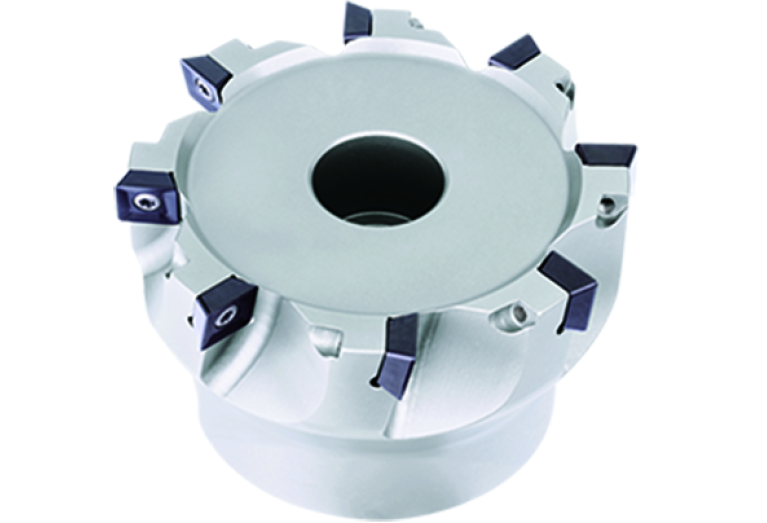

FMP02-050-A22-SE12-03

Артикул: FMP02-050-A22-SE12-03

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

20 Degree

B1A Cutting edge length Pos. A

13.308 mm

B3A Inscribed circle diameter Pos. A

13.308 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.04 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

10.8 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2.9 kg

DIN

FDA02202200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face mill

HAND Cutting direction

R - Right

ID Identifying order number

FMP02-050-A22-SE12-03

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

OAL Overall length

40 mm

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling,FPL - Face milling,FRU - Round moulding

WT Weight of item

0.3 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
