Главная Каталог продукции Toolunited 10 308-02 - Shoulder milling cutter FMAXR16024D

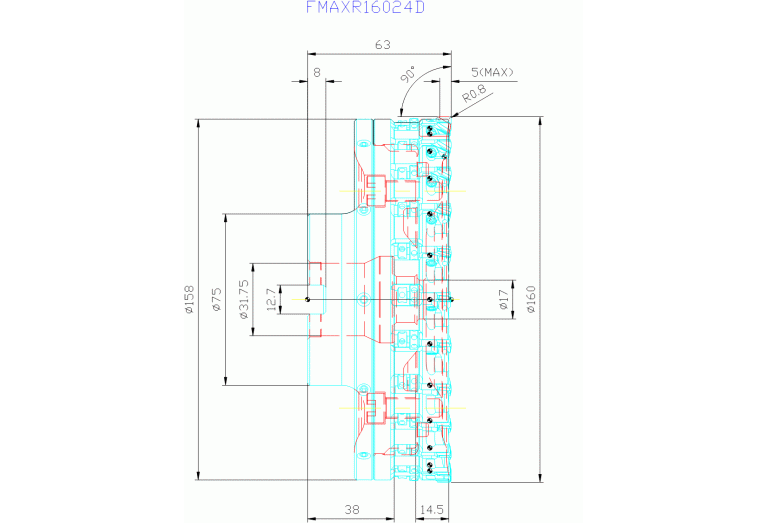

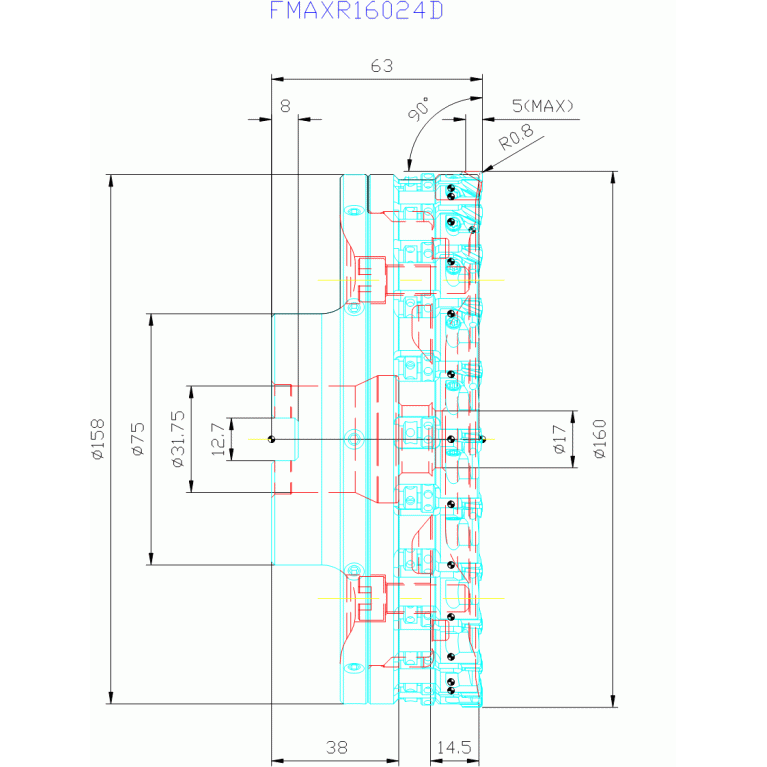

FMAXR16024D

FMAXR16024D FMAXR16024D FMAXR16024D FMAXR16024D

FMAXR16024D

Mitsubishi Materials
Артикул: 10581773
В наличии
В корзину
Описание
Характеристики
BI Block index
1
BLDA Tool style code Position A
99
CCONMS Connection count machine side
1
CDX Cutting depth maximum
2 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
17 mm
DC Cutting diameter
160 mm
DCCB Counterbore diameter connection bore
53 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DHUB Hub diameter
75 mm
DIN
FDA12502220
F23 Number of mounting layers
1
FamilyProducts
FMAX type modular face mill
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
10581773
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
10 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
GOER1408PXFR2
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
GO1408PX1R
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12502220
MIID Master insert identification
GOER1408PXFR2
Name Identifying order number
FMAXR16024D
OAL Overall length
63 mm
RPMX Rotational speed maximum
10000 1/min
Working process
No working processes available
WT Weight of item
3.39 kg
