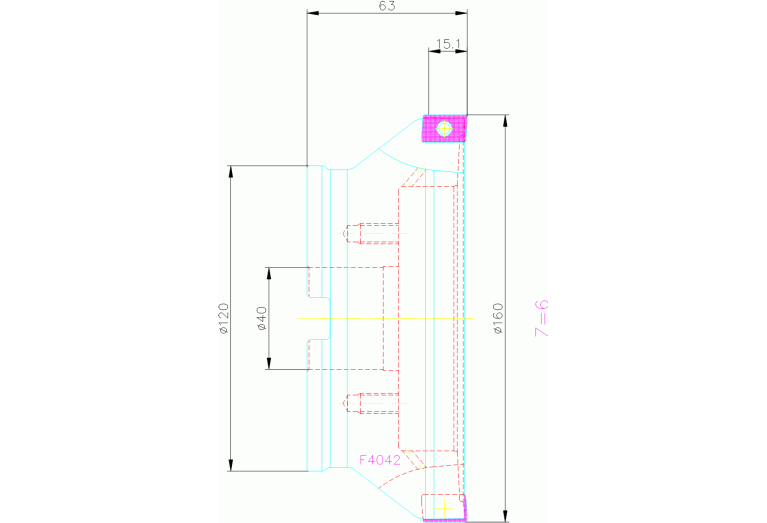

Главная Каталог продукции Toolunited 10 308-02 - Shoulder milling cutter F4042.B40.160.Z06.15

F4042.B40.160.Z06.15

Артикул: 5403050

В наличии

В корзину

Описание

Характеристики

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

160 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SPK04000113

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters F4042

HAND Cutting direction

R - Right

ID Technical product number

5403050

Interface codes

J6 / J61

ISO

SPK01G4000$$$$

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01 ISO

WR$$AD1606**3R*****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-AD1606**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 CCTMS Type

SPK Spindle nose mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

SPK01G4000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK04000113

Name Identifying order number

F4042.B40.160.Z06.15

OAL Overall length

63 mm

RMPX Ramping angle maximum

0.65 Degree

RPMX Rotational speed maximum

7900 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

4.2 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
