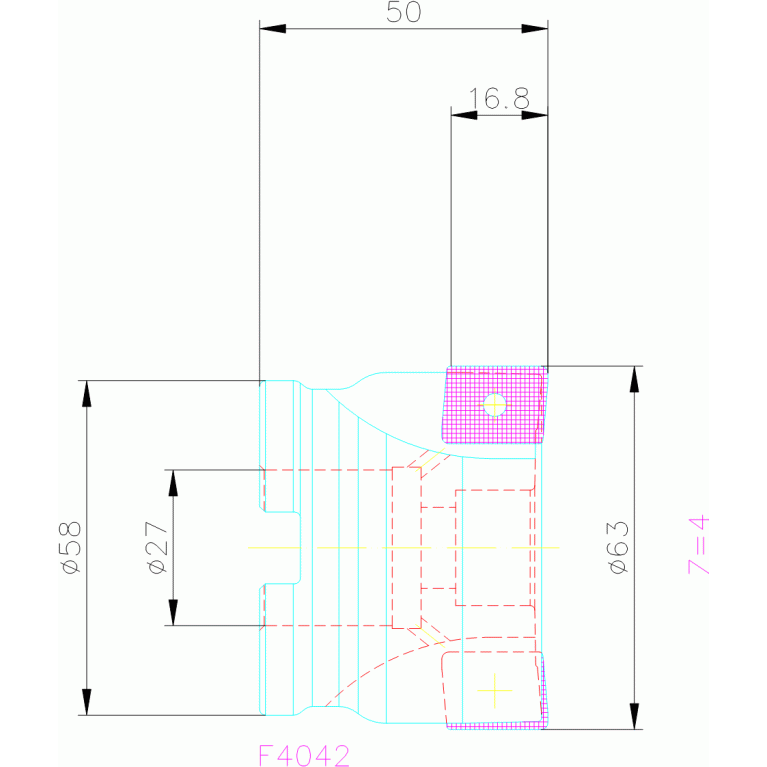

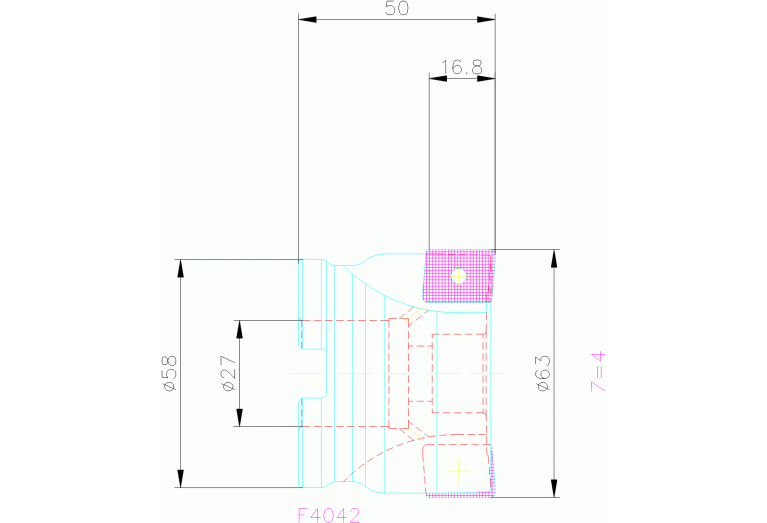

Главная Каталог продукции Toolunited 10 308-02 - Shoulder milling cutter F4042.B27.063.Z04.16

F4042.B27.063.Z04.16

Артикул: 5403052

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

AZ Plunge depth maximum

1.1 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

16.7 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DAH Diameter access hole

20 mm

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB Hub diameter

58 mm

DIN

FDA02701210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters F4042

HAND Cutting direction

R - Right

ID Technical product number

5403052

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

FDA12G2700$$$$

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03 ISO

FDA12G2700$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02701210

Name Identifying order number

F4042.B27.063.Z04.16

OAL Overall length

50 mm

RMPX Ramping angle maximum

1.24 Degree

RPMX Rotational speed maximum

12600 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
