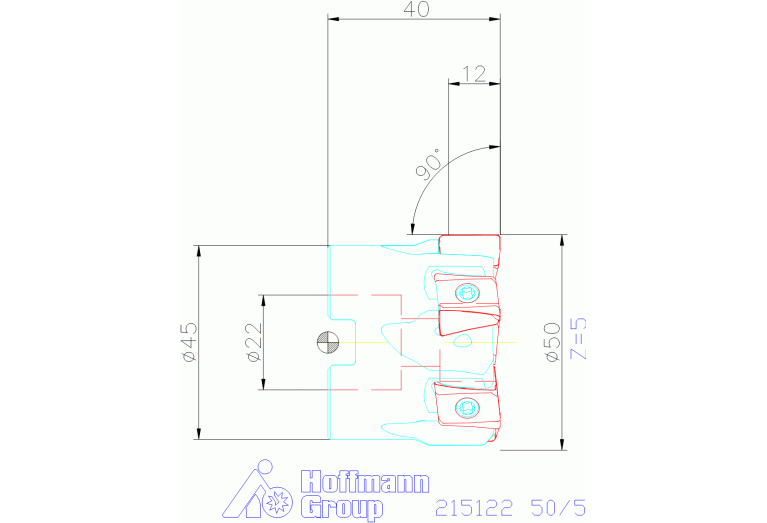

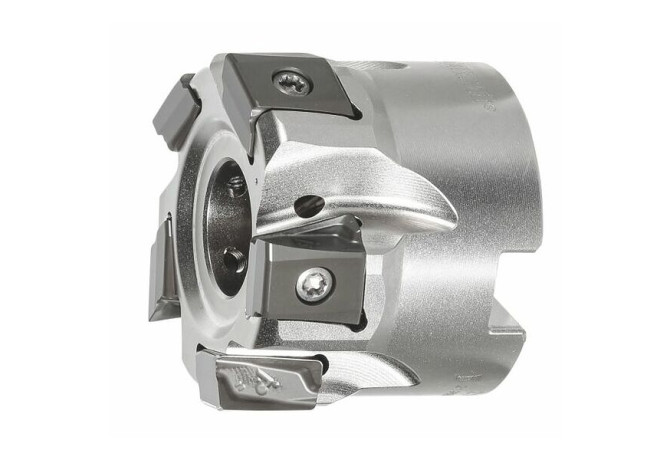

Главная Каталог продукции Toolunited 10 308-02 - Shoulder milling cutter 215122 50/5

215122 50/5

Артикул: 215122 50/5

В наличии

В корзину

Описание

Характеристики

AZ Plunge depth maximum

2.14 mm

BD Body diameter

47.75 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

12 mm

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DC Cutting diameter

50 mm

DCCB Counterbore diameter connection bore

18 mm

DCP Data chip provision

0 - Without data chip

DHUB Hub diameter

45 mm

DIN

FDA02202210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° tangential high performance indexable end/face mill

GAMF Rake angle radial

-22 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

14 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202210

Name Identifying order number

215122 50/5

OAL Overall length

40 mm

RMPX Ramping angle maximum

0 Degree

Working process

No working processes available

WT Weight of item

0.3 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
