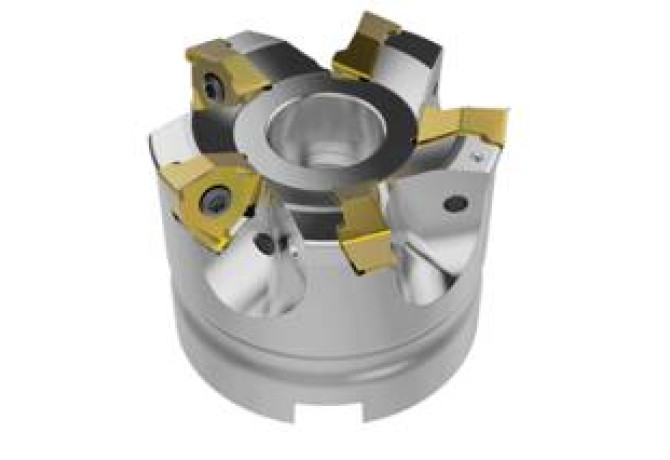

Главная Каталог продукции Toolunited 10 308-01 - Face milling cutter R220.79-0100-08-9A

R220.79-0100-08-9A

R220.79-0100-08-9A

R220.79-0100-08-9A

R220.79-0100-08-9A

R220.79-0100-08-9A

R220.79-0100-08-9A

R220.79-0100-08-9A

Seco

Артикул: 03058322

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

88.28 Degree

A2A Clearance angle major Pos. A

0 Degree

B1A Cutting edge length Pos. A

7.5 mm

B3A Inscribed circle diameter Pos. A

12.48 mm

BLDA Tool style code Position A

99

C1A Insert thickness Pos. A

6.45 mm

CCONMS Connection count machine side

2

CDX Cutting depth maximum

6.962 mm

CICT Cutting item count

9

COMPC Company code

SO - SECO Tools

D1A Corner radius Pos. A

0.8 mm

D6A Wiper edge length Pos. A

1.3 mm

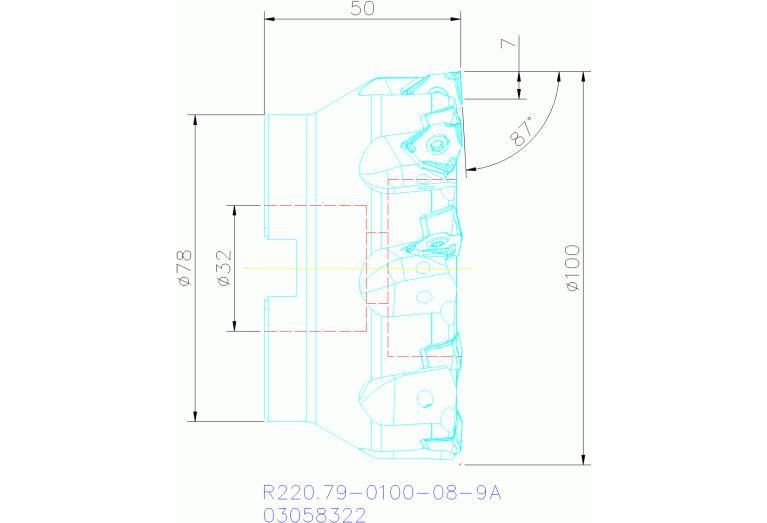

DC Cutting diameter

100 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DHUB Hub diameter

78 mm

DIN

FDA03200200

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

9

FamilyProducts

R220.79-0100-08-9A

GAMF Rake angle radial

-9 Degree

GAMP Rake angle axial

-11 Degree

HAND Cutting direction

R - Right

ID Technical product number

03058322

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

86.92 Degree

LOC-03 CCFMS Connection code form

02

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03200200

Name Identifying order number

R220.79-0100-08-9A

RPMX Rotational speed maximum

7500 1/min

Working process

No working processes available

WT Weight of item

1.8 kg

ZEFF Face effective cutting edge count

9

ZEFP Peripheral effective cutting edge count

9
