Главная Каталог продукции Toolunited 10 308-01 - Face milling cutter R220.26-0050-RN1207.5A

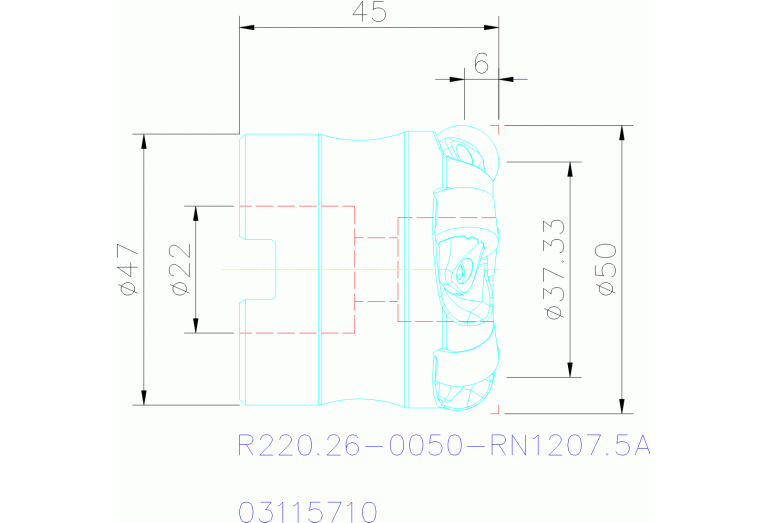

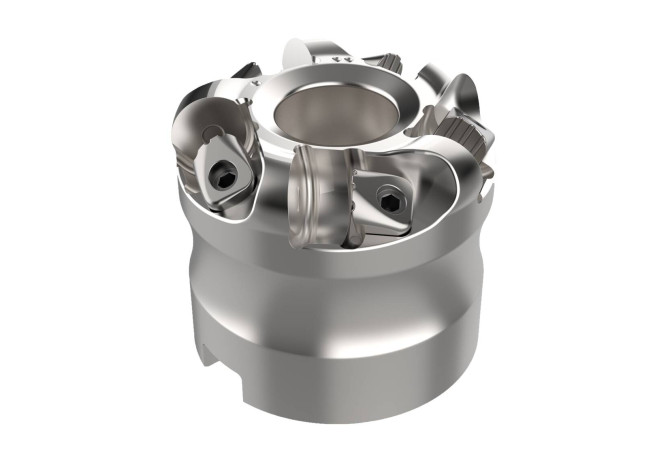

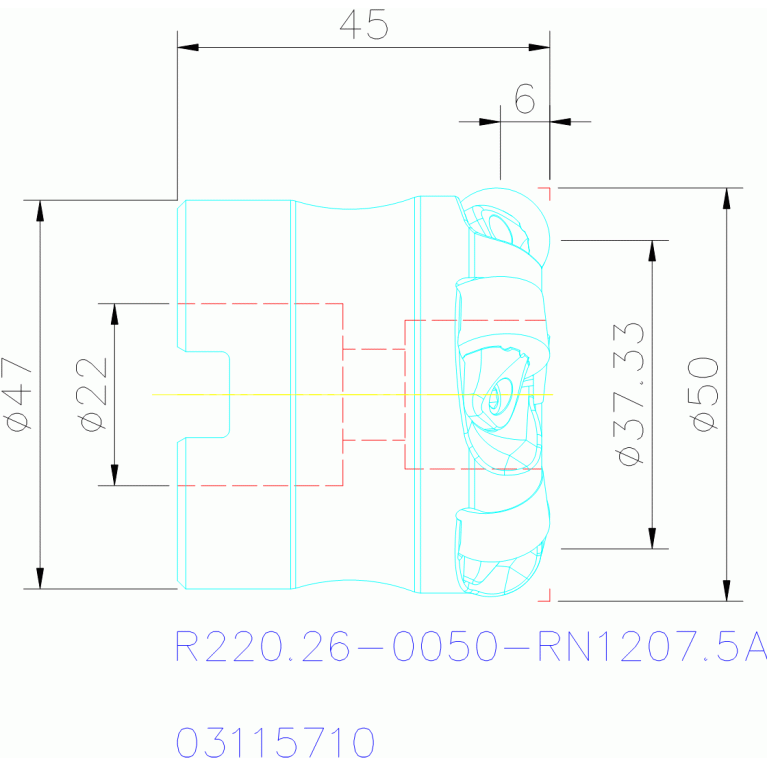

R220.26-0050-RN1207.5A

R220.26-0050-RN1207.5A R220.26-0050-RN1207.5A R220.26-0050-RN1207.5A R220.26-0050-RN1207.5A

R220.26-0050-RN1207.5A

Seco
Артикул: 03115710
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
37.329 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
50 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
47 mm
DIN
FDA02202200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
R220.26-0050-RN1207.5A
GAMF Rake angle radial
-12 Degree
GAMP Rake angle axial
-6 Degree
ID Technical product number
03115710
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202200
Name Identifying order number
R220.26-0050-RN1207.5A
OAL Overall length
45 mm
RPMX Rotational speed maximum
11900 1/min
Working process
No working processes available
WT Weight of item
0.445 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
