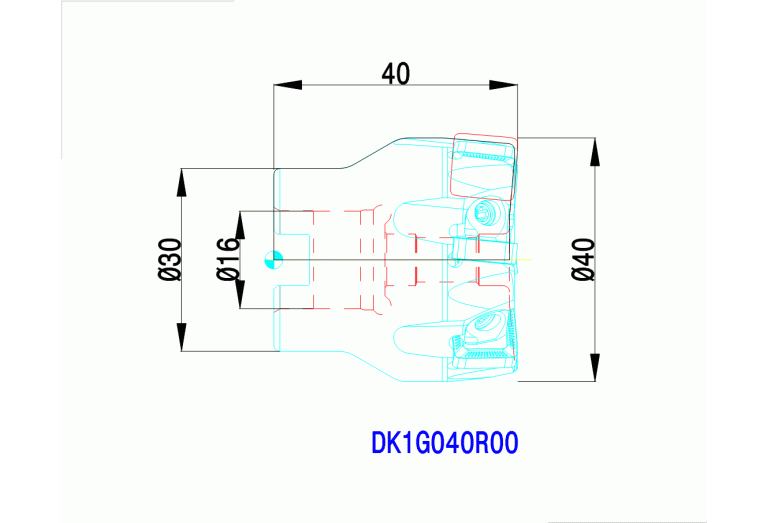

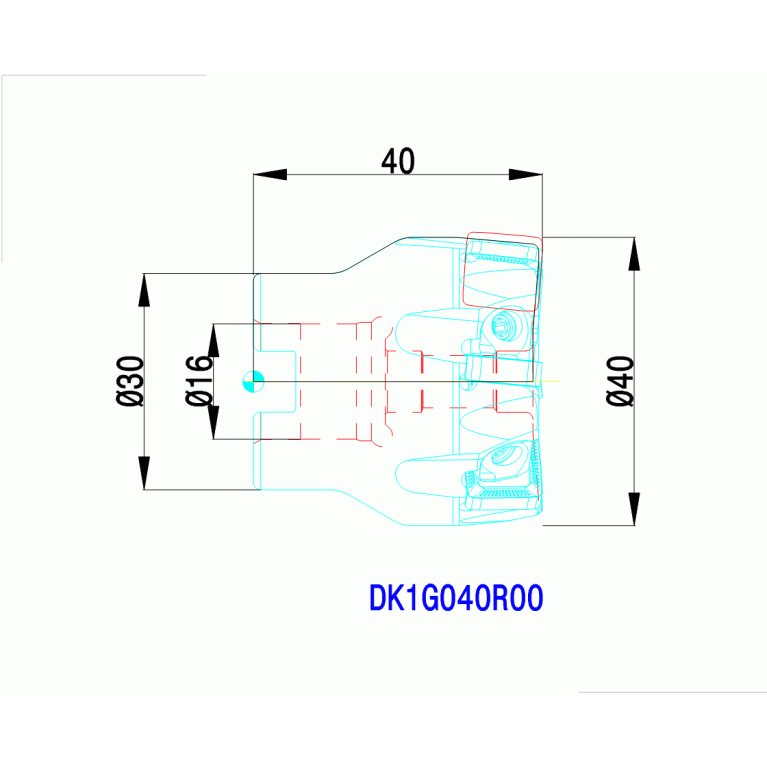

Главная Каталог продукции Toolunited 10 308-01 - Face milling cutter DK1G040R00

DK1G040R00

DK1G040R00 DK1G040R00 DK1G040R00 DK1G040R00

DK1G040R00

Ingersoll
Артикул: 3058546
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
8.3 mm
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
41.4 mm
Delivery state
LA - Soon discontinued
DHUB Hub diameter
30 mm
DIN
FDA01601210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Shoulder-Type Face Mill DK1G
HAND Cutting direction
R - Right
ID Technical product number
3058546
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
85.5 Degree
LOC-03 CCFMS Connection code form
12
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01601210
Name Identifying order number
DK1G040R00
OAL Overall length
40 mm
Working process
No working processes available
WT Weight of item
0.27 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
