5G5M160R30
5G5M160R30
Артикул:
5879483_
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
18.952 mm
B2A Insert width Pos. A
18.95 mm
B3A Inscribed circle diameter Pos. A
18.95 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
6.35 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
7.8 mm
CICT Cutting item count
10
CNSC Coolant entry style code
4 - With Coolant entry, axial on hole circle
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
131.7 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
160 mm
Delivery state
LL - Stock limited
DHUB Hub diameter
130 mm
DIN
SPK04000110
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10

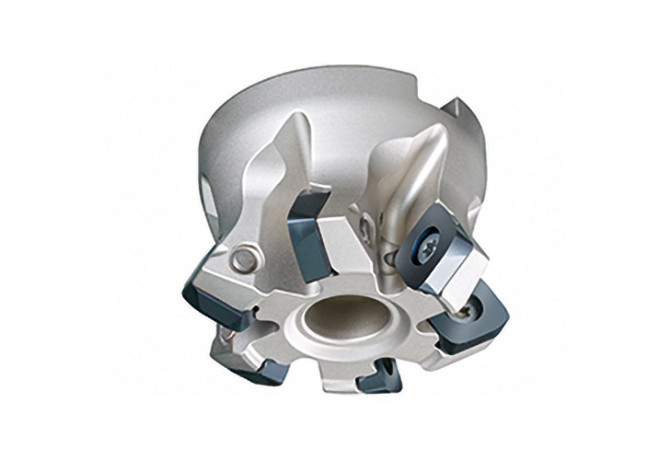

FamilyProducts
Face Mill 30° 5G5M
HAND Cutting direction
R - Right
ID Technical product number
5879483
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
30 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000110
Name Identifying order number
5G5M160R30
OAL Overall length
63 mm
Working process
No working processes available
WT Weight of item
4.4 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
