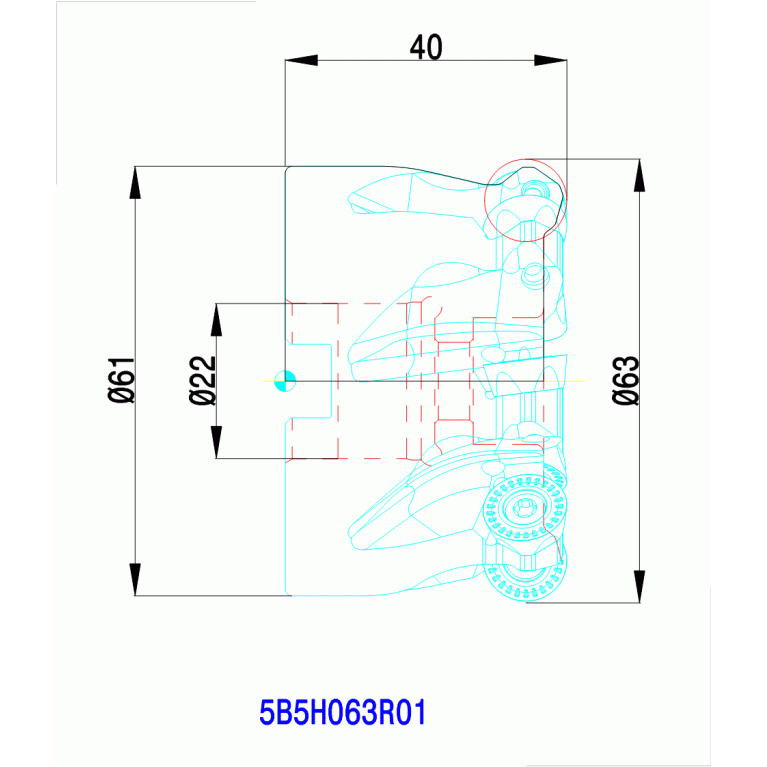

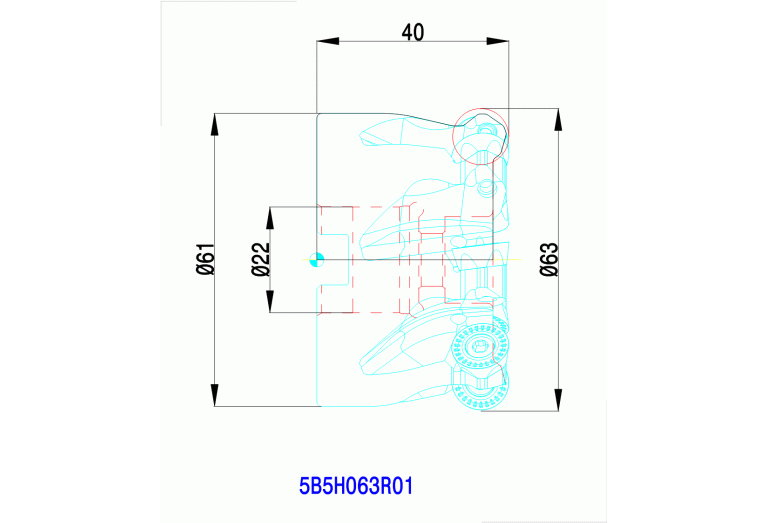

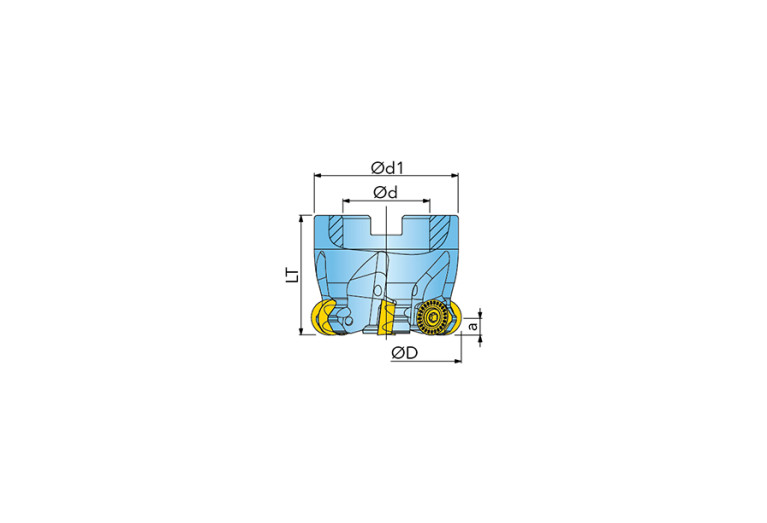

Главная Каталог продукции Toolunited 10 308-01 - Face milling cutter 5B5H063R01

5B5H063R01

5B5H063R01 5B5H063R01 5B5H063R01 5B5H063R01

5B5H063R01

Ingersoll
Артикул: 5895220
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
3 mm
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DHUB Hub diameter
61 mm
DIN
FDA02202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Copy End Mill 5B5H
HAND Cutting direction
R - Right
ID Technical product number
5895220
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202210
Name Identifying order number
5B5H063R01
OAL Overall length
40 mm
RMPX Ramping angle maximum
4 Degree
Working process
No working processes available
WT Weight of item
0.64 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
