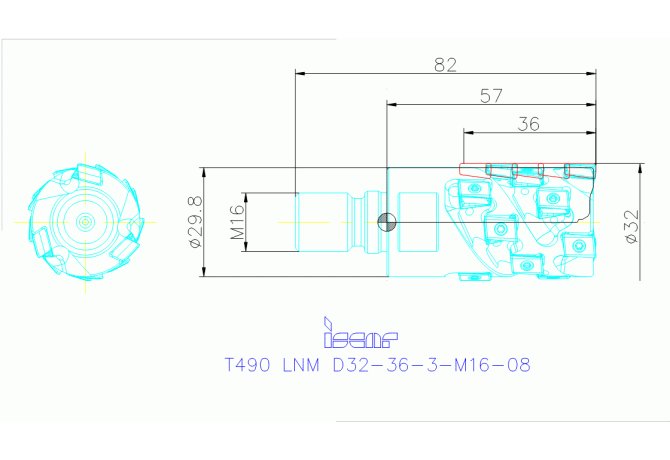

T490 LNM D32-36-3-M16-08

Артикул: 3107053

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

36 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01600295

FamilyProducts

Extended Flute Endmills with a FLEXFIT Threaded Adaptation Carrying Tangentially Clamped Inserts

HAND Cutting direction

R - Right

ID Technical product number

3107053

Interface codes

J6 / J61

ISO

SAI02C0160$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02 MIID Master insert identification

T490 LNMT 0804PNR

LOC-02 ISO

IS$$906478313787228

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-906478313787228

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

30 mm

LOC-03 ISO

SAI02C0160$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01600295

Name Identifying order number

T490 LNM D32-36-3-M16-08

OAL Overall length

82 mm

RMPX Ramping angle maximum

0 Degree

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.26 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
