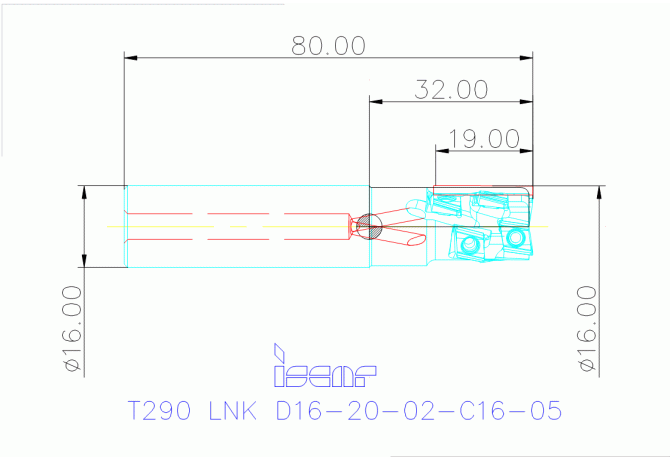

T290 LNK D16-20-02-C16-05

Артикул: 3105109

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

19 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01600115

FamilyProducts

Extended Flute Endmills with T290 LNMT/HT 0502... Tangentially Clamped Inserts

HAND Cutting direction

R - Right

ID Technical product number

3105109

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

80 mm

LH Head length

31 mm

LOC-02 BI Block index

LOC-02 MIID Master insert identification

T290 LNHT 050202TR

LOC-02 ISO

IS$$299137387163922

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-299137387163922

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR Protruding length

32 mm

Name Identifying order number

T290 LNK D16-20-02-C16-05

OAL Overall length

80 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.1 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
