Главная Каталог продукции Toolunited 10 307-07 - Non-centre cutting multiple rows end mill R217.94-3240.3S-050-08.4A

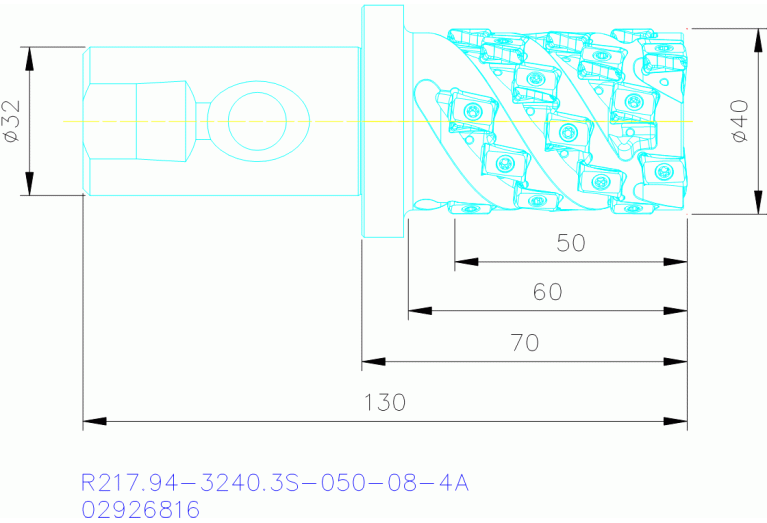

R217.94-3240.3S-050-08.4A

Артикул: 02926816

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

50 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03201415

FamilyProducts

R217.94-3240.3S-050-08.4A

GAMF Rake angle radial

-24 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

R - Right

ID Technical product number

02926816

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-LO0804 4R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201415

LPR Protruding length

70 mm

LS Shank length

60 mm

LU Usable length

60 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R217.94-3240.3S-050-08.4A

OAL Overall length

130 mm

RPMX Rotational speed maximum

16400 1/min

Working process

No working processes available

WT Weight of item

0.862 kg

ZEFP Peripheral effective cutting edge count
