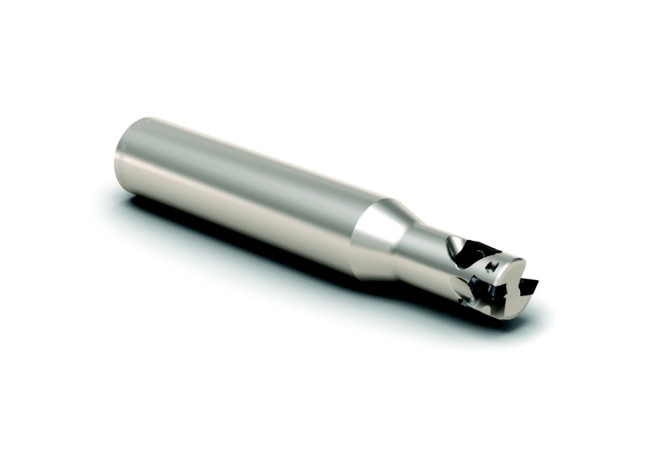

Главная Каталог продукции Toolunited 10 307-07 - Non-centre cutting multiple rows end mill R217.69-00.50-0-06S2N

R217.69-00.50-0-06S2N

R217.69-00.50-0-06S2N R217.69-00.50-0-06S2N R217.69-00.50-0-06S2N R217.69-00.50-0-06S2N

R217.69-00.50-0-06S2N

Seco
Артикул: 02710524
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
11.1 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
2.45 mm
CCONMS Connection count machine side
1
CICT Cutting item count
4
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.2 mm
D6A Wiper edge length Pos. A
1.1 mm

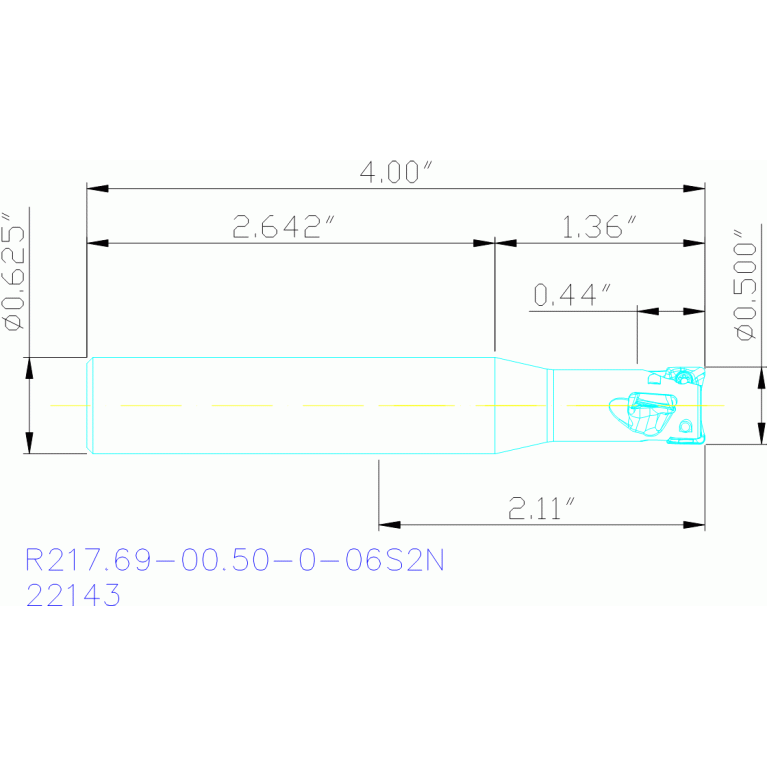

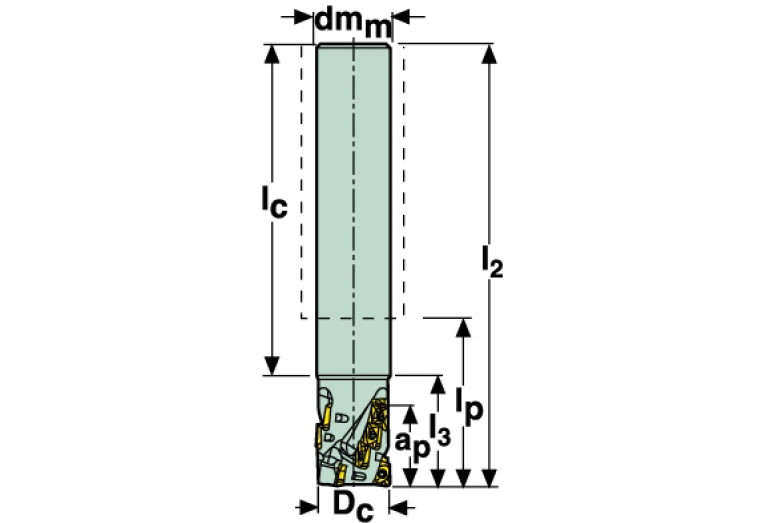

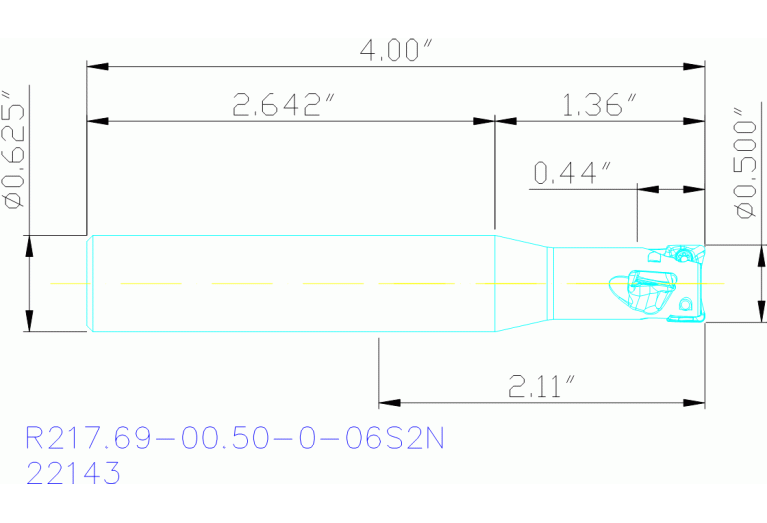

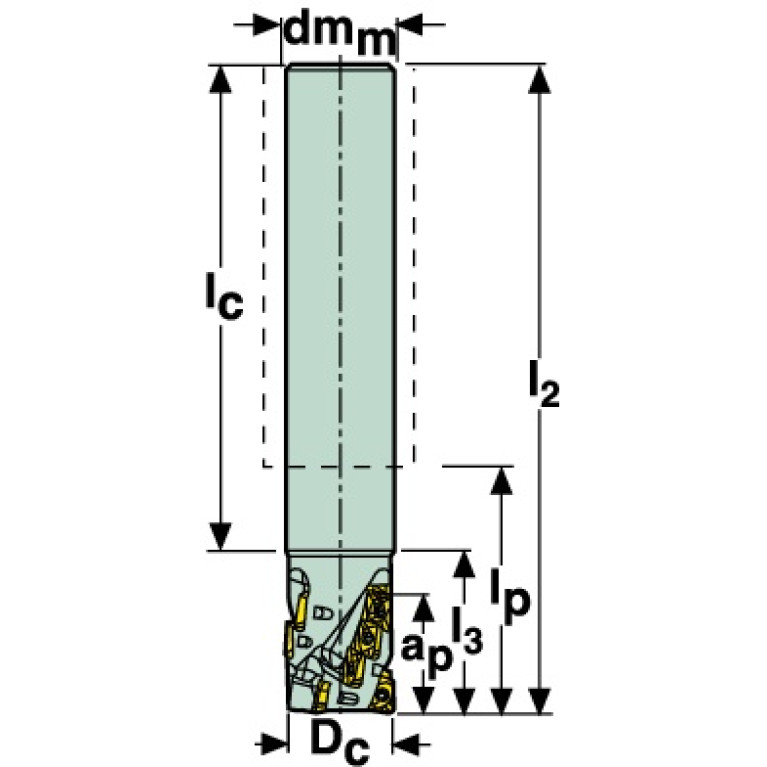

DC Cutting diameter
12.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
ZYL06250125
FamilyProducts
R217.69-00.50-0-06S2N
GAMF Rake angle radial
-9.3 Degree
GAMP Rake angle axial
4 Degree
HAND Cutting direction
R - Right
ID Technical product number
02710524
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
101.6 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SO XO 060204R
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO-XO 060204R
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0625
LOC-03 DCONMS Diameter
15.875 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06250125
LPR Protruding length
53.6 mm
LS Shank length
67.1 mm
LU Usable length
34.5 mm
Name Identifying order number
R217.69-00.50-0-06S2N
OAL Overall length
101.6 mm
RMPX Ramping angle maximum
6.5 Degree
RPMX Rotational speed maximum
54400 1/min
Working process
No working processes available
WT Weight of item
0.2 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
