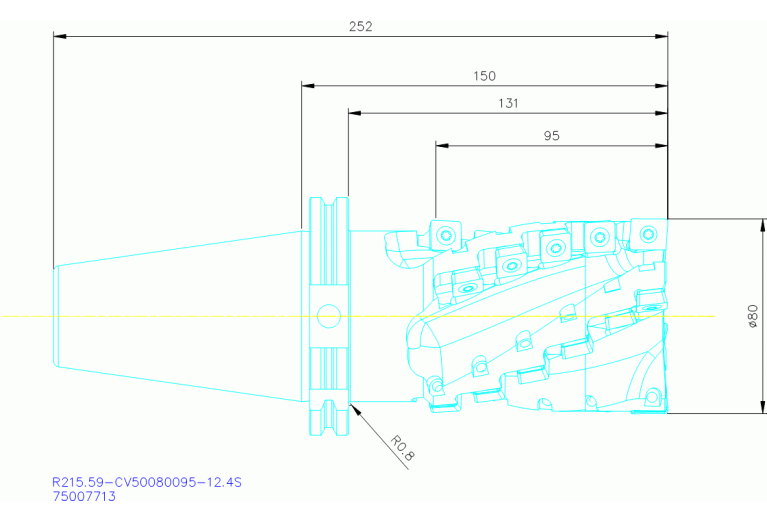

R215.59-CV50080095-12.4S

Артикул: 75007713

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

96 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

80 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SKG05001785

FamilyProducts

R215.59-CV50080095-12.4S

GAMF Rake angle radial

-4 Degree

GAMP Rake angle axial

-14 Degree

HAND Cutting direction

R - Right

ID Technical product number

75007713

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-AC1506 3R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001785

LU Usable length

131 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R215.59-CV50080095-12.4S

OAL Overall length

252 mm

RPMX Rotational speed maximum

6500 1/min

Working process

No working processes available

WT Weight of item

5.44 kg

ZEFP Peripheral effective cutting edge count
