Главная Каталог продукции Toolunited 10 307-07 - Non-centre cutting multiple rows end mill F2238.UN6.038.Z02.50

F2238.UN6.038.Z02.50

Артикул: 5034256

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

50 mm

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

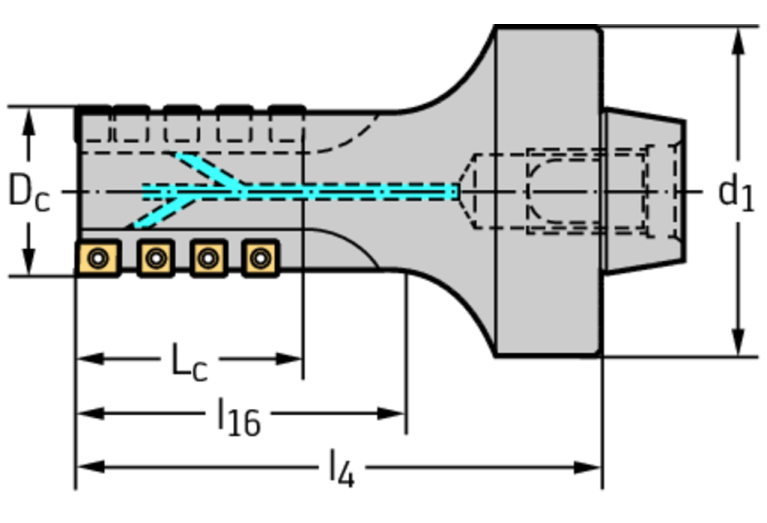

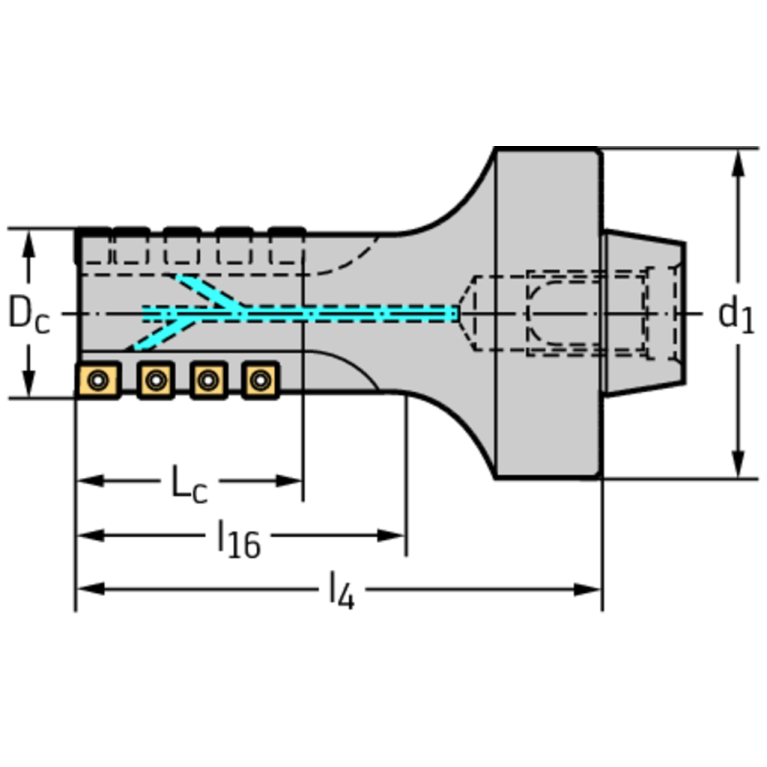

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

NCT06300185

FamilyProducts

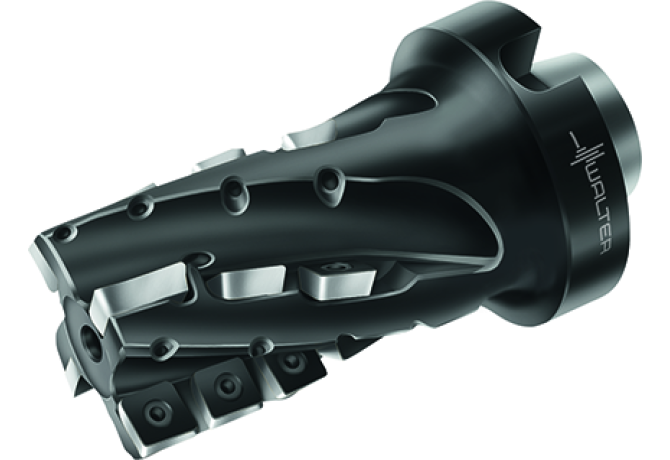

Porcupine milling cutters F2238

HAND Cutting direction

R - Right

ID Technical product number

5034256

Interface codes

J6 / J61

ISO

NCT01C0630$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01 ISO

WR$$LP15T3**3R*****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-LP15T3**

LOC-02 BI Block index

LOC-02 ISO

WR$$SP09T3**3R*****

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SP09T3**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

NCT01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT06300185

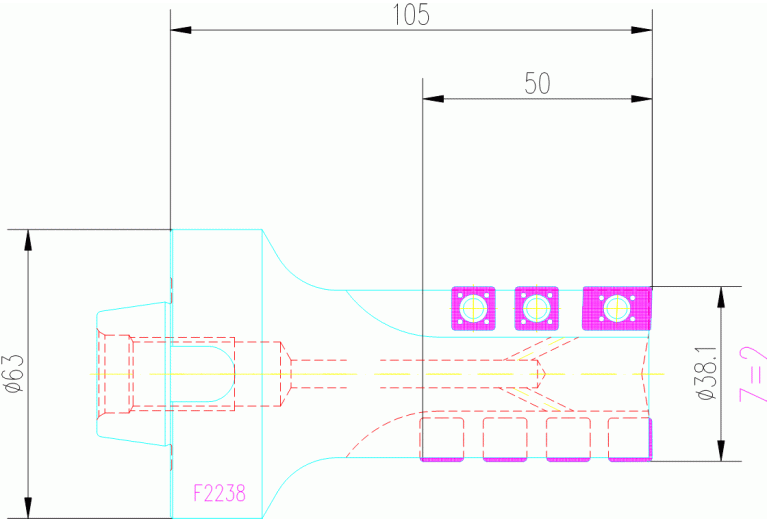

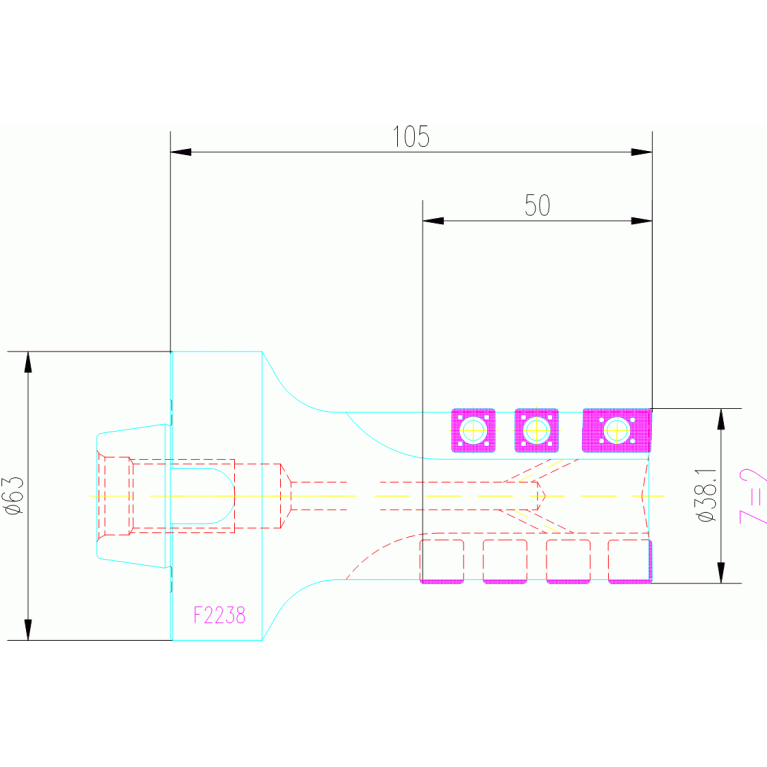

LPR Protruding length

105 mm

Name Identifying order number

F2238.UN6.038.Z02.50

OAL Overall length

121 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.99 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
