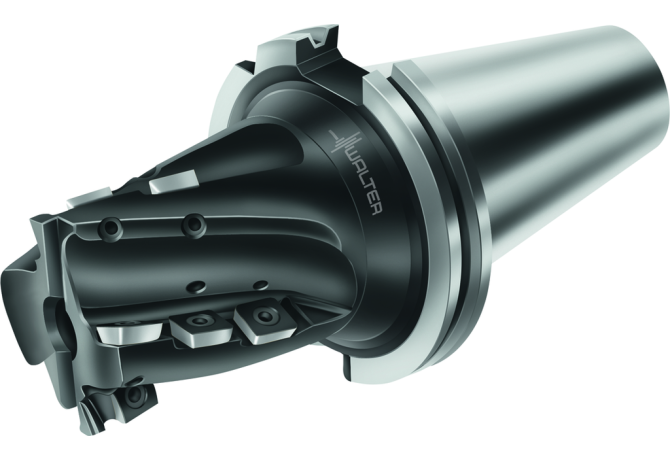

Главная Каталог продукции Toolunited 10 307-07 - Non-centre cutting multiple rows end mill F2238CK.US5.051.Z02.083

F2238CK.US5.051.Z02.083

Артикул: 5026796

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

83 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SKG05003195

FamilyProducts

Porcupine milling cutter basic bodies F2238CK

HAND Cutting direction

R - Right

ID Technical product number

5026796

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

SKG31C0500$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

134.95 mm

LOC-02 BI Block index

LOC-02 ISO

WR$$SP1204083R***08

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SP1204083R***08

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

SKG31C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003195

LPR Protruding length

134.95 mm

LU Usable length

134.95 mm

Name Identifying order number

F2238CK.US5.051.Z02.083

OAL Overall length

236.55 mm

RMPX Ramping angle maximum

0 Degree

STDLET Standard letter to the standard number

STDNO Standard

ASME B5.50

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

3.86 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
