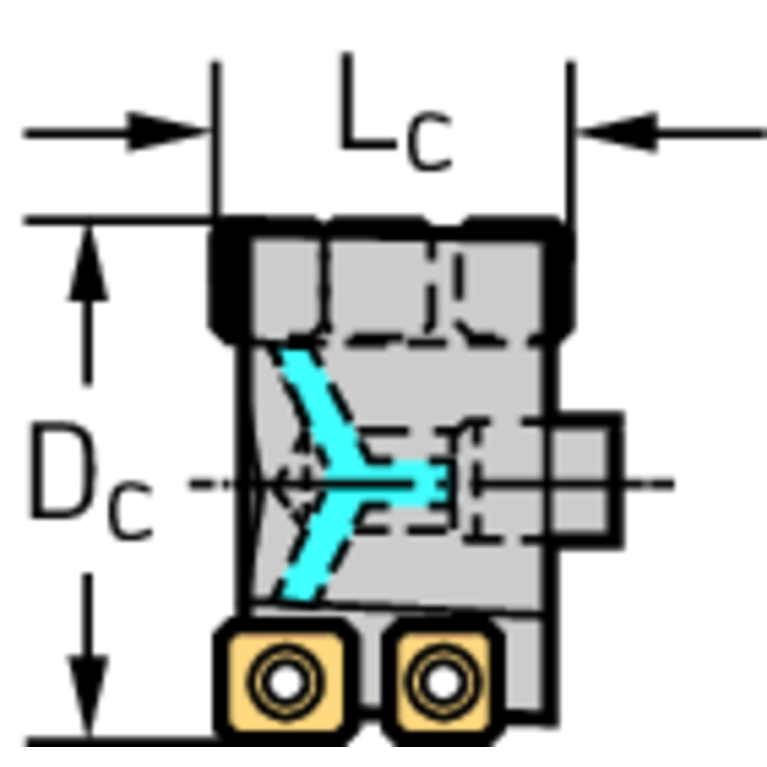

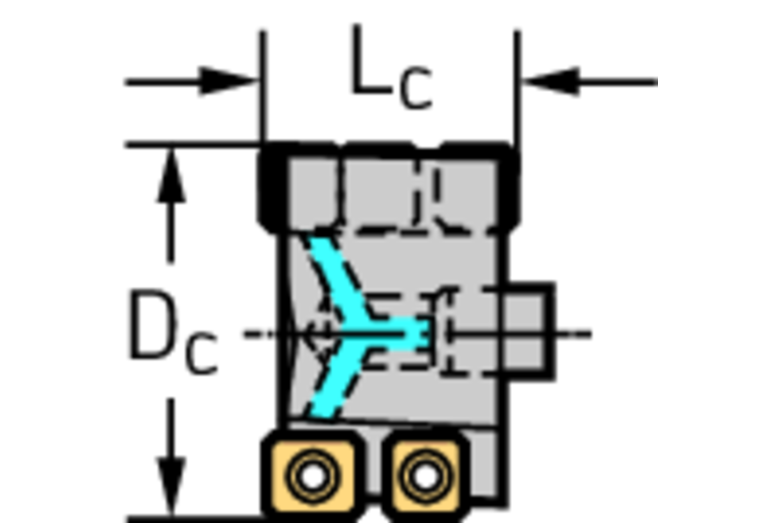

Главная Каталог продукции Toolunited 10 307-07 - Non-centre cutting multiple rows end mill F2238CE.UC.064.Z02.024

F2238CE.UC.064.Z02.024

Артикул: 5026829

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

24 mm

AZ Plunge depth maximum

1 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

FamilyProducts

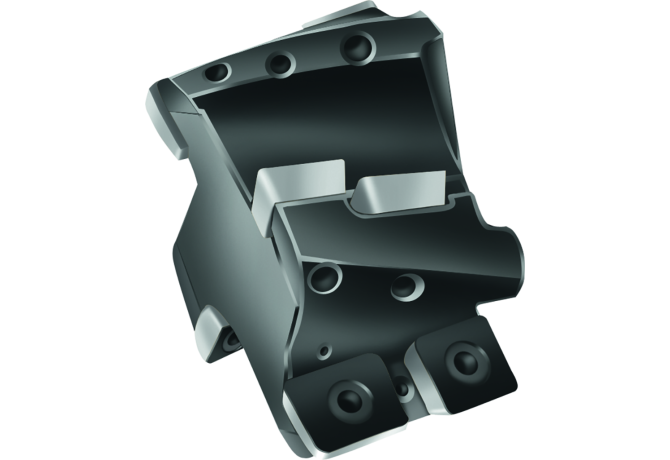

Porcupine milling cutter front piece F2238CE.C

HAND Cutting direction

R - Right

ID Technical product number

5026829

Interface codes

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LPR Protruding length

23.8 mm

LU Usable length

23.8 mm

Name Identifying order number

F2238CE.UC.064.Z02.024

OAL Overall length

23.8 mm

RMPX Ramping angle maximum

0 Degree

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.318 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
