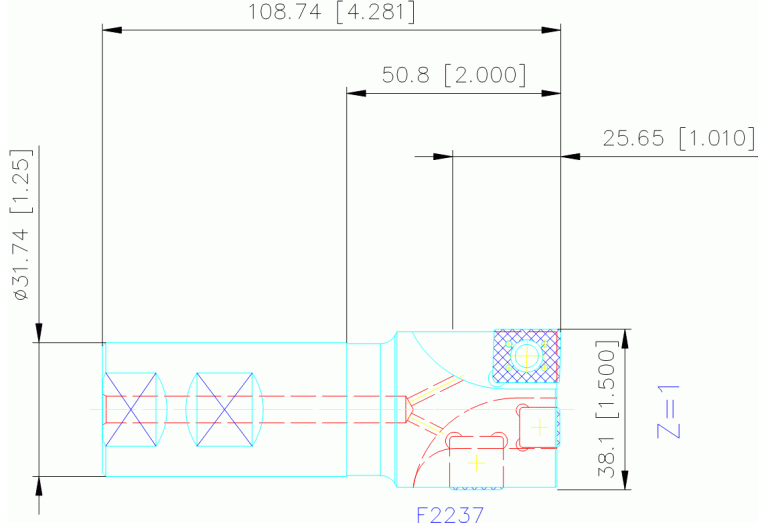

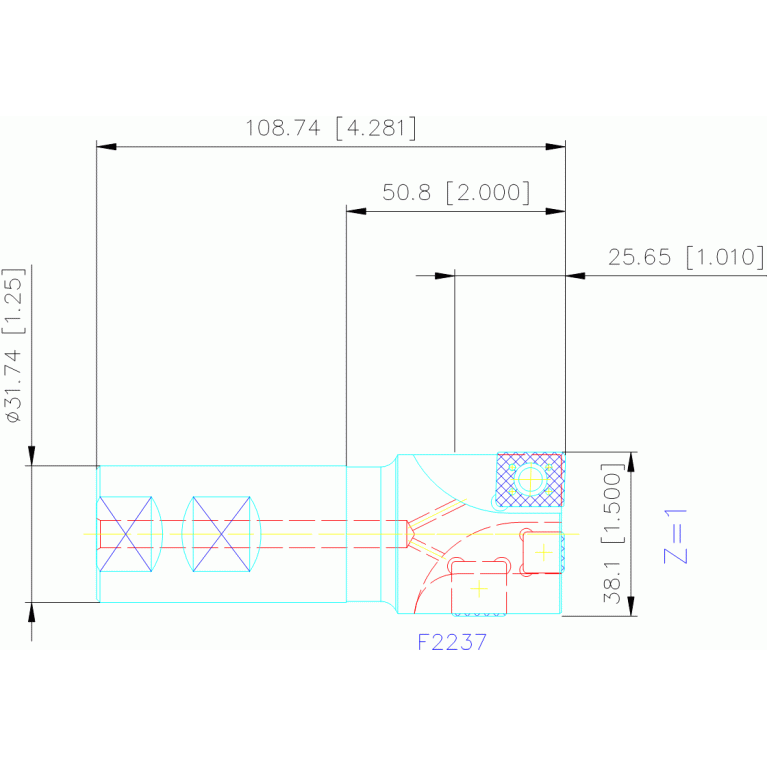

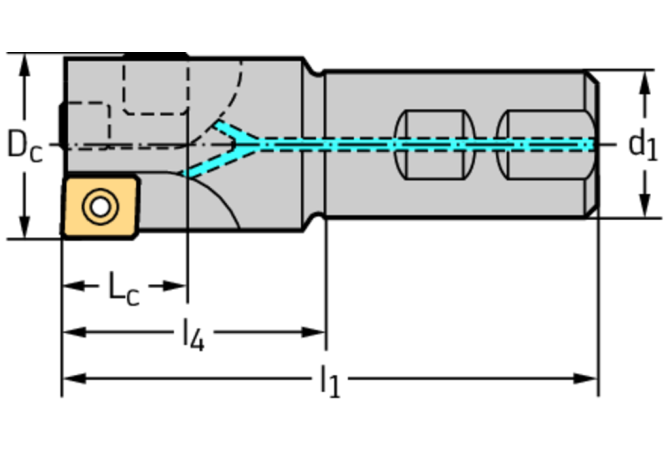

Главная Каталог продукции Toolunited 10 307-07 - Non-centre cutting multiple rows end mill F2237.UW31.038.Z01.25

F2237.UW31.038.Z01.25

Артикул: 5050736

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

25.654 mm

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL25001035

FamilyProducts

Routing cutters F2237

HAND Cutting direction

R - Right

ID Technical product number

5050736

Interface codes

J6 / J61

ISO

ZYL10S1250h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01 ISO

WR$$LP15T3**3R*****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-LP15T3**

LOC-02 BI Block index

LOC-02 ISO

WR$$SP09T3**3R*****

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SP09T3**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10S1250h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL25001035

LPR Protruding length

50.8 mm

Name Identifying order number

F2237.UW31.038.Z01.25

OAL Overall length

108.737 mm

RMPX Ramping angle maximum

90 Degree

STDLET Standard letter to the standard number

STDNO Standard

ISO3338-2

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.6 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
