Главная Каталог продукции Toolunited 10 307-07 - Non-centre cutting multiple rows end mill C8-R217.69-080-107-12.6SAN

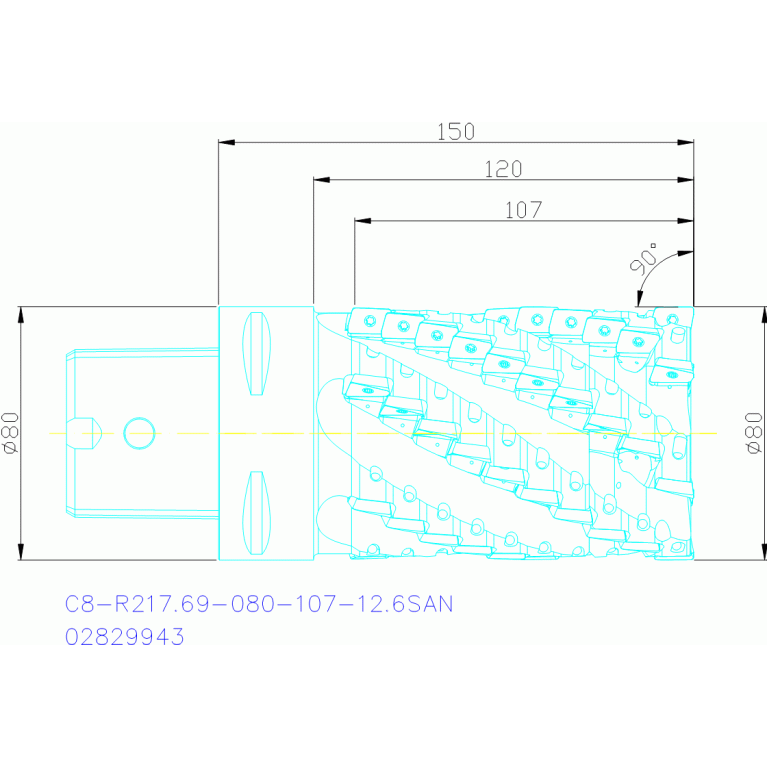

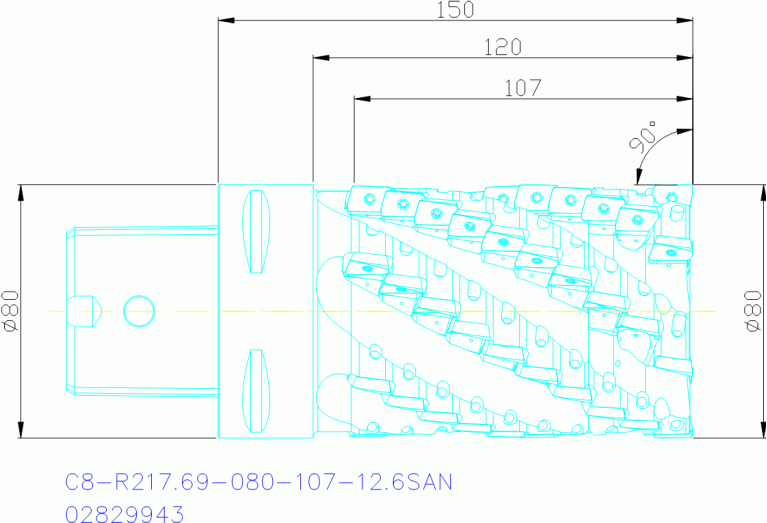

C8-R217.69-080-107-12.6SAN

C8-R217.69-080-107-12.6SAN C8-R217.69-080-107-12.6SAN C8-R217.69-080-107-12.6SAN C8-R217.69-080-107-12.6SAN

C8-R217.69-080-107-12.6SAN

SECO Tools
Артикул: 02829943
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
A2B Clearance angle major Pos. B
15 Degree

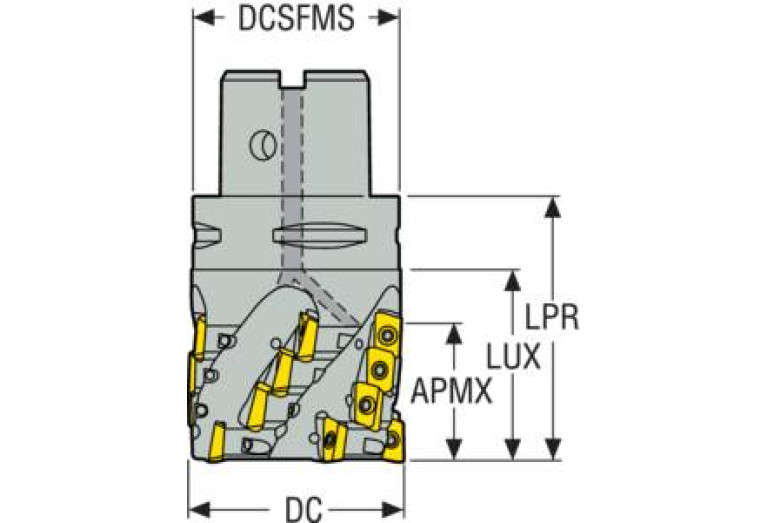

APMX Depth of cut maximum
107 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
5.03 mm
C1B Insert thickness Pos. B
5.03 mm
CCONMS Connection count machine side
2
CICT Cutting item count
60
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.2 mm
D1B Corner radius Pos. B
0.2 mm
D6A Wiper edge length Pos. A
2 mm
D6B Wiper edge length Pos. B
2 mm
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS08000185
FamilyProducts
C8-R217.69-080-107-12.6SAN
GAMF Rake angle radial
-4.1 Degree
GAMP Rake angle axial
7 Degree
HAND Cutting direction
R - Right
ID Technical product number
02829943
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
CCS01C0800$$$$
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
XOEX120402R-M07
LOC-02 ISO
SO$$XO1204**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO-XO 120408R
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0800
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000185
LU Usable length
120 mm
Name Identifying order number
C8-R217.69-080-107-12.6SAN
OAL Overall length
198 mm
RMPX Ramping angle maximum
1 Degree
RPMX Rotational speed maximum
12000 1/min
Working process
No working processes available
WT Weight of item
4.8 kg
ZEFP Peripheral effective cutting edge count
6
