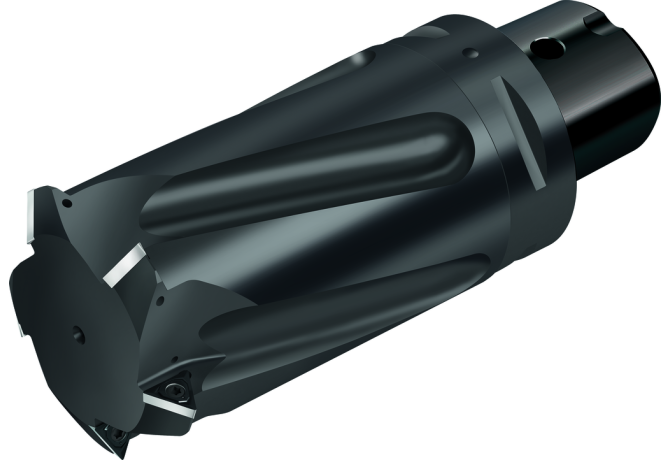

T2713-60-C5-4-14

Артикул: 7493806

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

115 mm

BD Body diameter

51.4 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

2 - With Coolant exit, radial

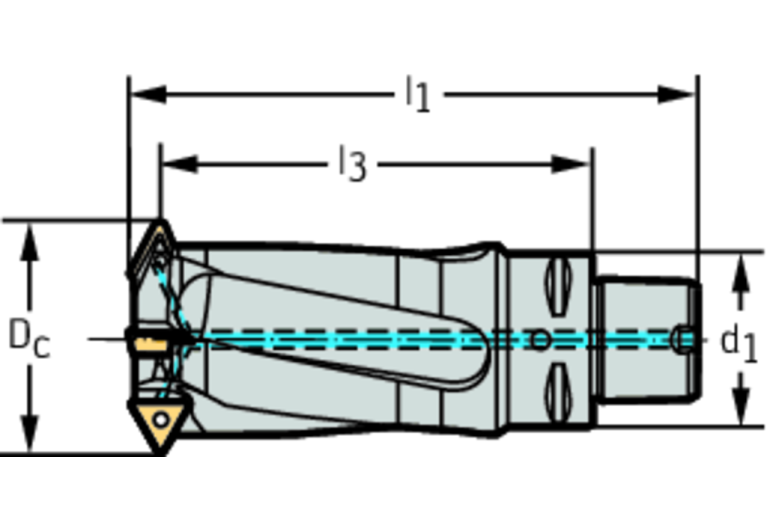

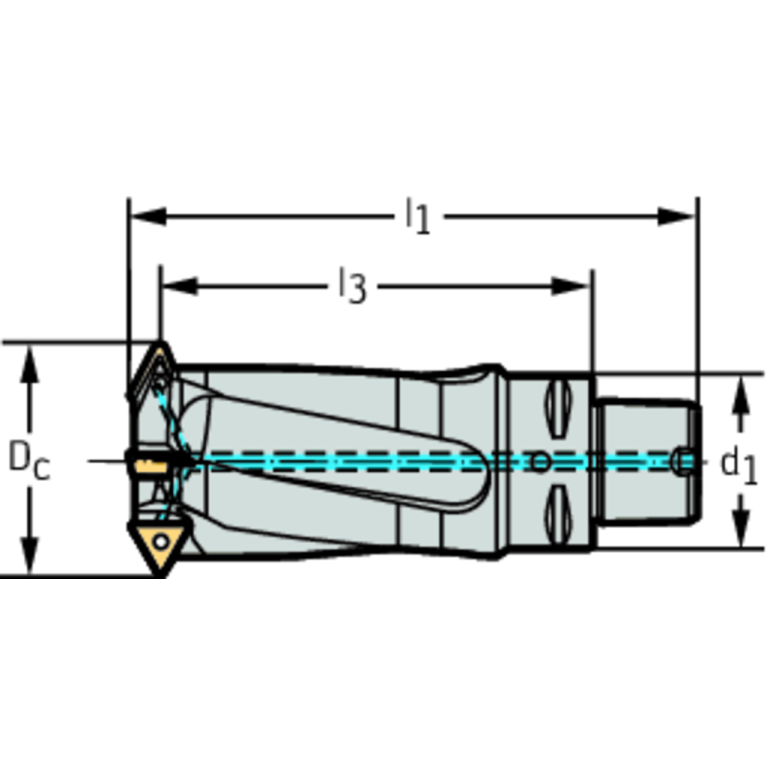

DC Cutting diameter

60 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000195

DN Neck diameter

51.4 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Indexable insert thread milling cutter T2713

HAND Cutting direction

R - Right

ID Technical product number

7493806

Interface codes

J6 / J61

ISO

CCS01C0500$$$$

ISYC Subclass

307-06 - Threading end mill

LF Functional length

115 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR Protruding length

115 mm

LS Shank length

30 mm

LU Usable length

115 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

T2713-60-C5-4-14

OAL Overall length

151.7 mm

RPMX Rotational speed maximum

17000 1/min

STDNO Standard

ISO26623-1

Working process

FPR - Profile milling,FSB - Thrilling (drilling & threading)

WT Weight of item

1.758 kg

ZEFP Peripheral effective cutting edge count
