Главная Каталог продукции Toolunited 10 307-06 - Threading end mill T2713-40-W40-3-14

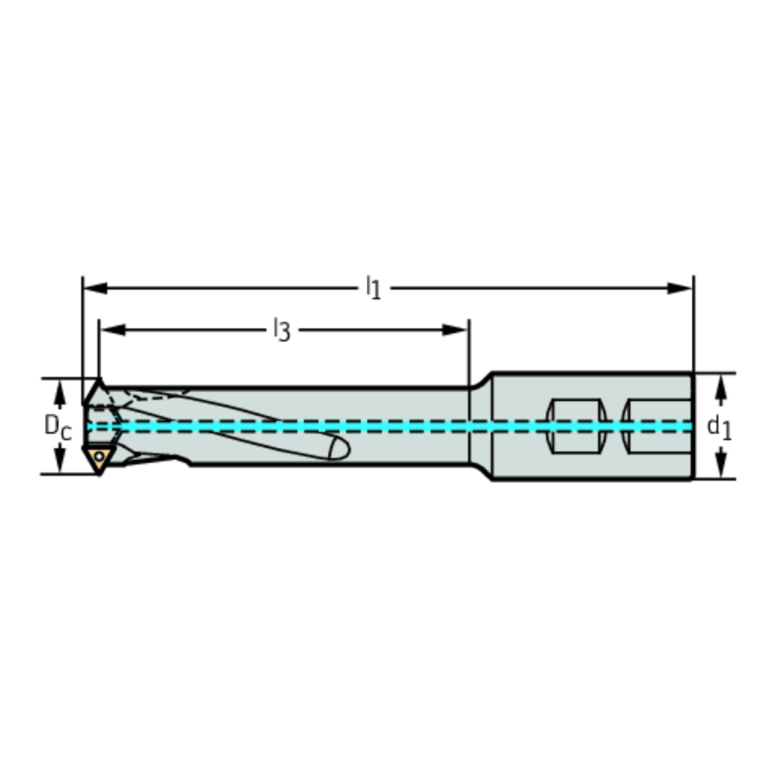

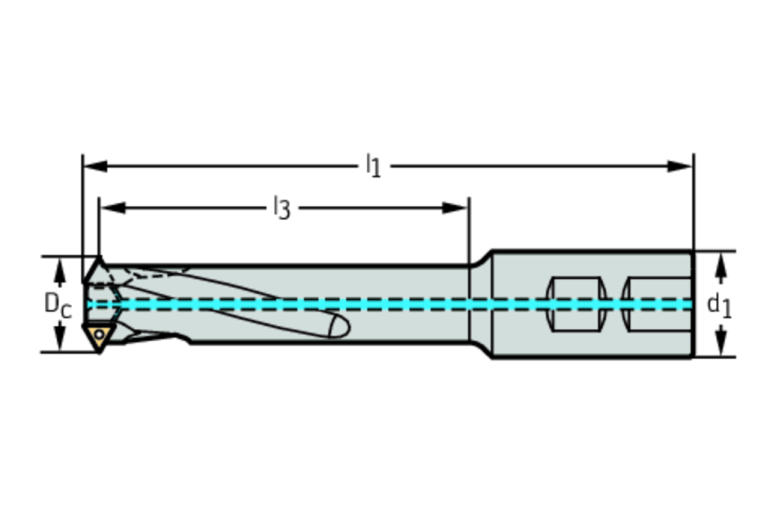

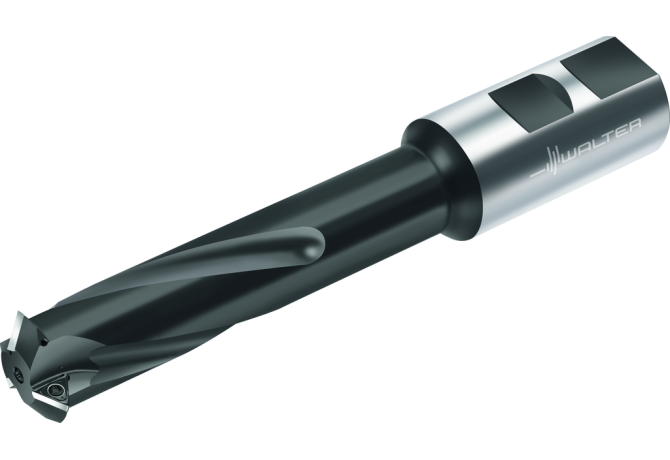

T2713-40-W40-3-14

T2713-40-W40-3-14 T2713-40-W40-3-14 T2713-40-W40-3-14

T2713-40-W40-3-14

Walter
Артикул: 7493803
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
151 mm
BD Body diameter
33 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL04001015
DN Neck diameter
33 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Indexable insert thread milling cutter T2713
HAND Cutting direction
R - Right
ID Technical product number
7493803
Interface codes
J6 / J61
ISO
ZYL10G4000h$06
ISYC Subclass
307-06 - Threading end mill
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001015
LPR Protruding length
157 mm
LS Shank length
70 mm
LU Usable length
151 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
T2713-40-W40-3-14
OAL Overall length
234.7 mm
RPMX Rotational speed maximum
26000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FPR - Profile milling,FSB - Thrilling (drilling & threading)
WT Weight of item
1.616 kg
ZEFP Peripheral effective cutting edge count
3
