Главная Каталог продукции Toolunited 10 307-06 - Threading end mill T2713-19-W20-3-06

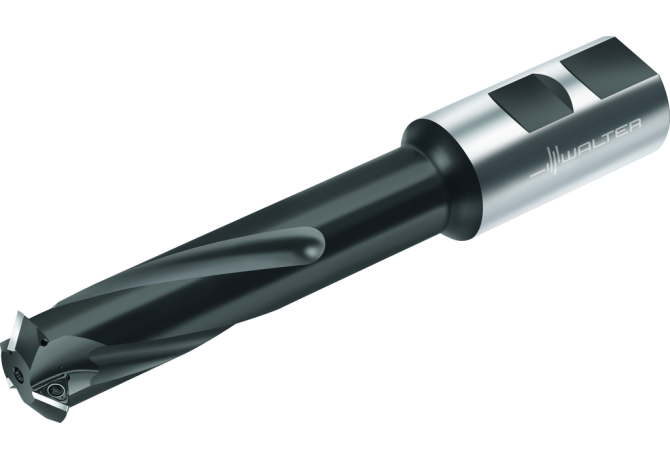

T2713-19-W20-3-06

T2713-19-W20-3-06 T2713-19-W20-3-06 T2713-19-W20-3-06

T2713-19-W20-3-06

Walter
Артикул: 7493800
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
75 mm
BD Body diameter
14.6 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial
DC Cutting diameter
19 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02001015
DN Neck diameter
14.6 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Indexable insert thread milling cutter T2713
HAND Cutting direction
R - Right
ID Technical product number
7493800
Interface codes
J6 / J61
ISO
ZYL10G2000h$06
ISYC Subclass
307-06 - Threading end mill
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001015
LPR Protruding length
81 mm
LS Shank length
50 mm
LU Usable length
75 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
T2713-19-W20-3-06
OAL Overall length
135.3 mm
RPMX Rotational speed maximum
40000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FPR - Profile milling,FSB - Thrilling (drilling & threading)
WT Weight of item
0.217 kg
ZEFP Peripheral effective cutting edge count
3
