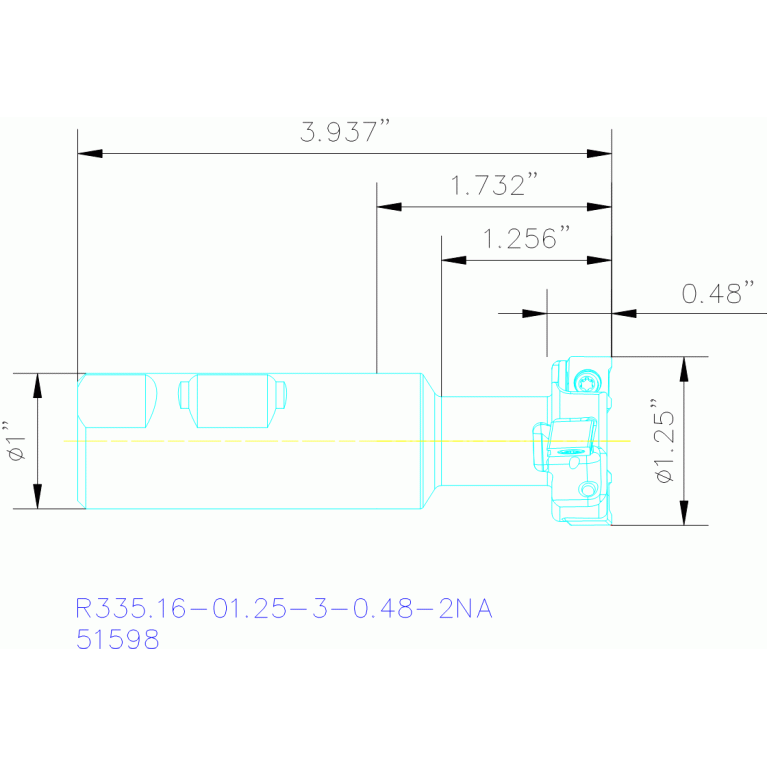

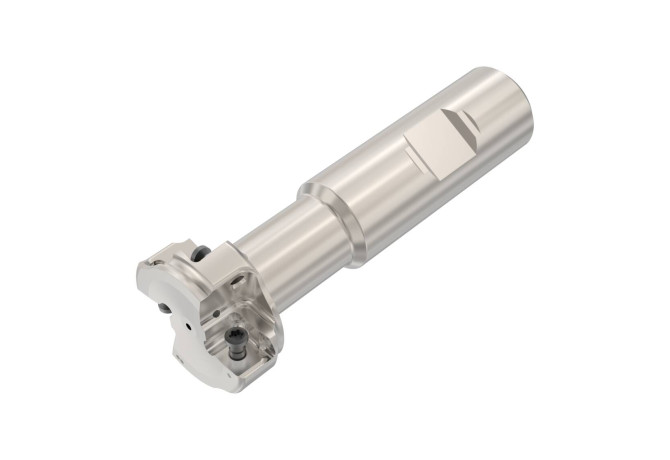

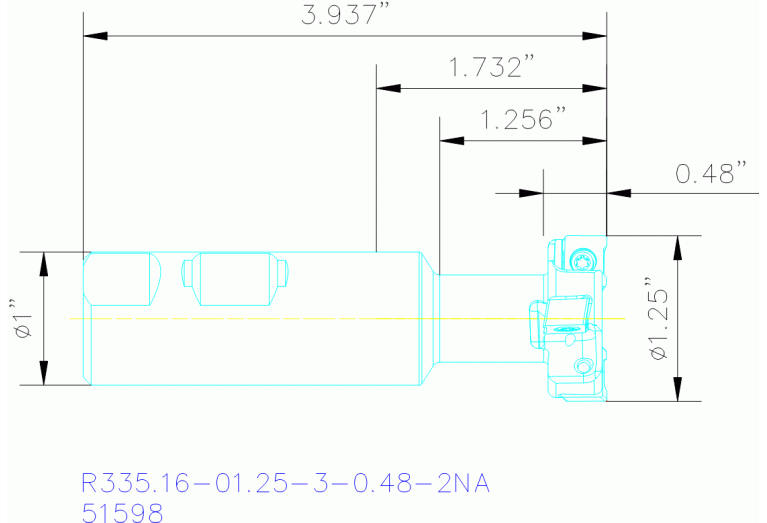

R335.16-01.25-3-0.48-2NA

R335.16-01.25-3-0.48-2NA R335.16-01.25-3-0.48-2NA R335.16-01.25-3-0.48-2NA R335.16-01.25-3-0.48-2NA

R335.16-01.25-3-0.48-2NA

SECO Tools
Артикул: 02980639
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
12.11 mm
CCONMS Connection count machine side
1
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
31.73 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10001035
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
R335.16-01.25-3-0.48-2NA
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
2 Degree
HAND Cutting direction
R - Right
ID Technical product number
02980639
Interface codes
J6 /
ISYC Subclass
307-06 - Threading end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001035
LPR Protruding length
42.582 mm
LS Shank length
64.5 mm
LU Usable length
31.89 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
R335.16-01.25-3-0.48-2NA
OAL Overall length
100 mm
RPMX Rotational speed maximum
17600 1/min
Working process
No working processes available
WT Weight of item
0.344 kg
ZEFP Peripheral effective cutting edge count
2
