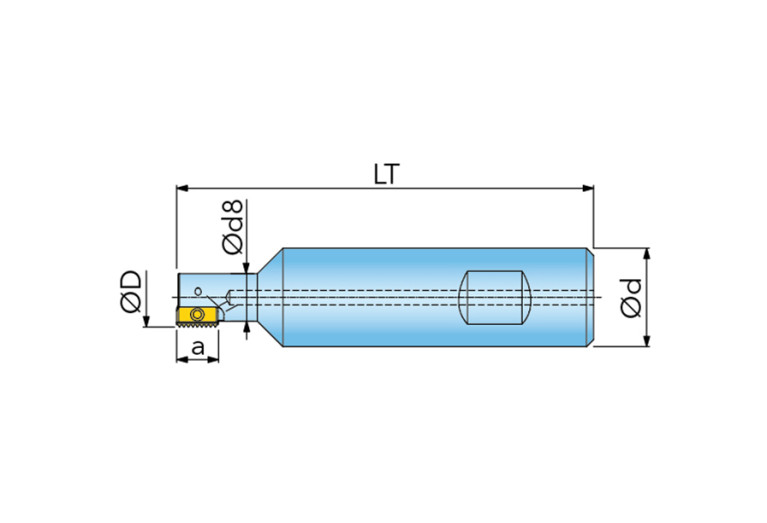

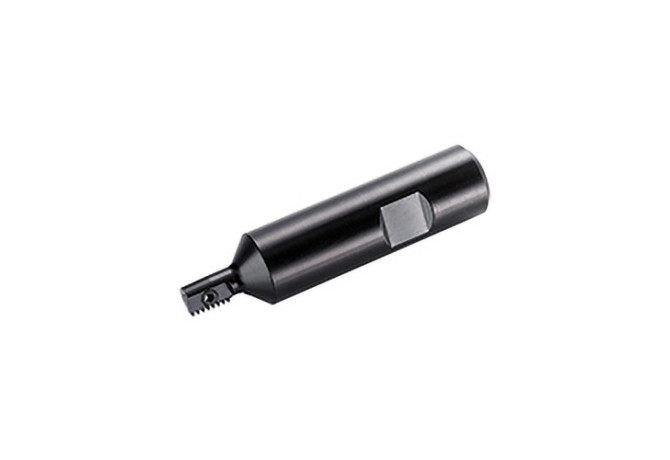

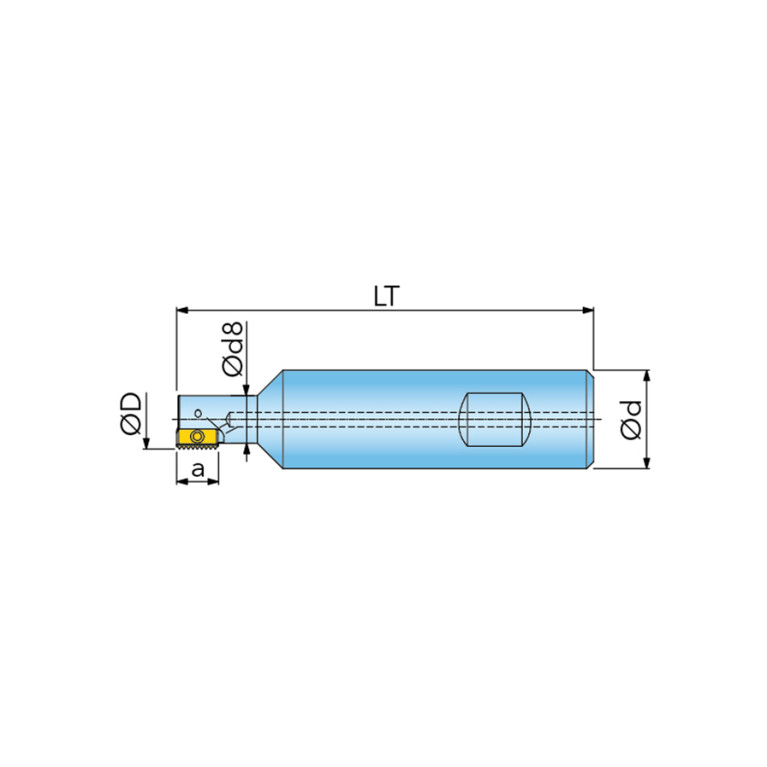

MTED09.9-1-W20-12
MTED09.9-1-W20-12
Артикул:
3346917
В наличии
Характеристики
CCONMS Connection count machine side
1
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
9.9 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02001015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
Threading End Mill (a=12mm)
ID Technical product number
3346917
Interface codes
J6 /
ISYC Subclass
307-06 - Threading end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001015
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
MTED09.9-1-W20-12
OAL Overall length
85 mm
Working process
No working processes available
WT Weight of item
0.175 kg
ZEFP Peripheral effective cutting edge count
1
