Главная Каталог продукции Toolunited 10 307-05 - Single row rounded end mill R217.29I-01.00-12RE-06.2A

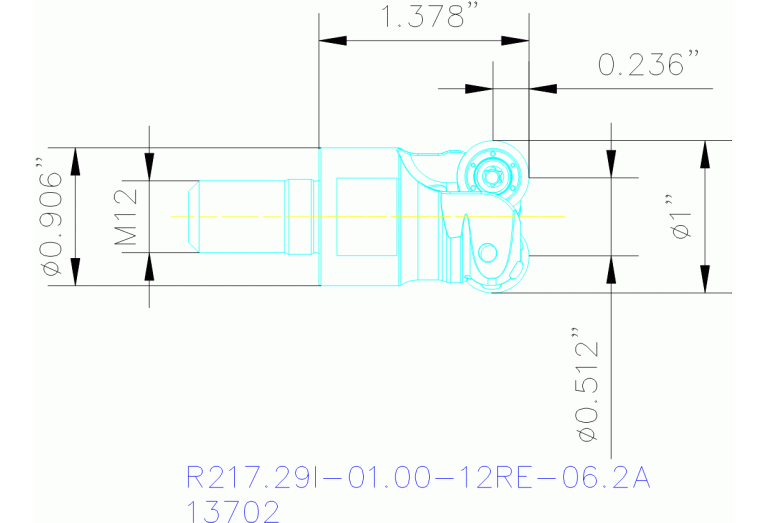

R217.29I-01.00-12RE-06.2A

R217.29I-01.00-12RE-06.2A R217.29I-01.00-12RE-06.2A R217.29I-01.00-12RE-06.2A R217.29I-01.00-12RE-06.2A

R217.29I-01.00-12RE-06.2A

SECO Tools
Артикул: 02949633
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
6 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
13.4 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
25.4 mm
Delivery state valid from
12/1/2023
DIN
SCM01200115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R217.29I-01.00-12RE-06.2A
GAMF Rake angle radial
-3 Degree
GAMP Rake angle axial
-4 Degree
HAND Cutting direction
R - Right
ID Technical product number
02949633
Interface codes
J6 /
ISYC Subclass
307-05 - Single row rounded end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SCM
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SCM01200115
MILTTY Mill tool type ISO
N - Torus End Mill
Name Identifying order number
R217.29I-01.00-12RE-06.2A
OAL Overall length
56.75 mm
RMPX Ramping angle maximum
12 Degree
RPMX Rotational speed maximum
17700 1/min
THSZMS Connection thread nominal size machine side
M12
Working process
No working processes available
WT Weight of item
0.148 kg
