Главная Каталог продукции Toolunited 10 307-05 - Single row rounded end mill M2471-025-A25-03-05-L

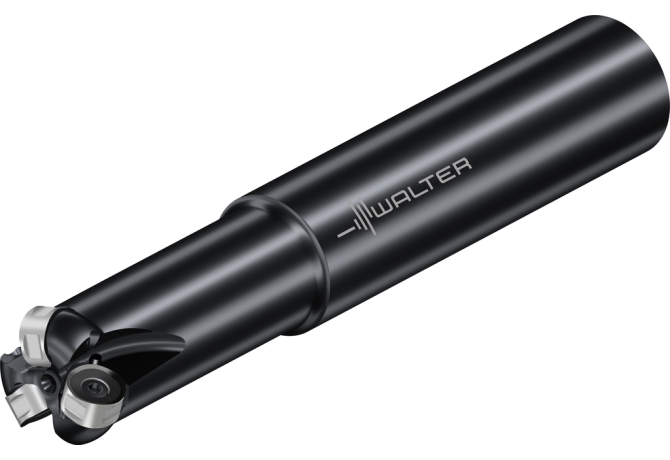

M2471-025-A25-03-05-L

M2471-025-A25-03-05-L M2471-025-A25-03-05-L M2471-025-A25-03-05-L

M2471-025-A25-03-05-L

Walter
Артикул: 7804286
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
5 mm
AZ Plunge depth maximum
0.45 mm
BD Body diameter
23.7 mm
BLDA Tool style code Position A
10
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
5 mm
DC Cutting diameter
15 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
25 mm
Delivery state valid from
12/1/2023
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Copy milling cutters with round inserts M2471
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7804286
Interface codes
J6 / J61
ISO
ZYL01G2500$$$$
ISYC Subclass
307-05 - Single row rounded end mill
LF Functional length
150 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL01G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
60 mm
LS Shank length
56 mm
LU Usable length
60 mm
MILTTY Mill tool type ISO
N - Torus End Mill
Name Identifying order number
M2471-025-A25-03-05-L
OAL Overall length
150 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
27200 1/min
Working process
FFO - Die milling,FPL - Face milling
WT Weight of item
0.473 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
