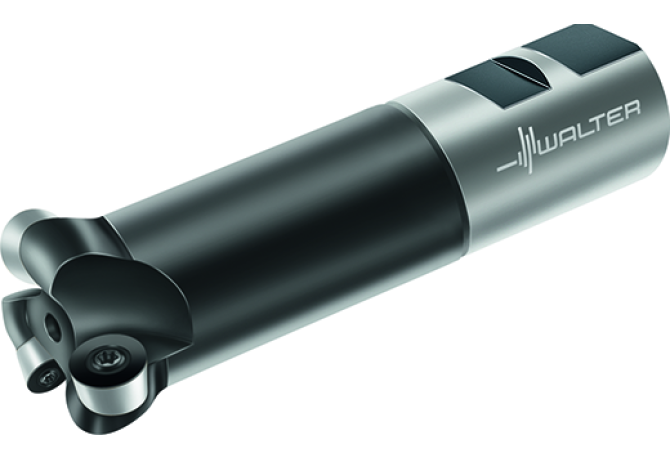

Главная Каталог продукции Toolunited 10 307-05 - Single row rounded end mill F2234.Z.025.Z02.05XL

F2234.Z.025.Z02.05XL

F2234.Z.025.Z02.05XL F2234.Z.025.Z02.05XL F2234.Z.025.Z02.05XL

F2234.Z.025.Z02.05XL

Walter
Артикул: 5044251
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
5 mm
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
15 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
25 mm
Delivery state valid from
12/1/2023
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Copy milling cutters with round inserts F2234
HAND Cutting direction
R - Right
ID Technical product number
5044251
Interface codes
J6 / J61
ISO
ZYL01G2500$$$$
ISYC Subclass
307-05 - Single row rounded end mill
LF Functional length
200 mm
LOC-01 BI Block index
1
LOC-01 ISO
WR$$RD10T3**3R*****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-RD10T3**
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL01G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
35 mm
LU Usable length
35.4 mm
Name Identifying order number
F2234.Z.025.Z02.05XL
OAL Overall length
200 mm
RMPX Ramping angle maximum
14.6 Degree
RPMX Rotational speed maximum
27000 1/min
Working process
No working processes available
WT Weight of item
0 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
