212140 42/6
212140 42/6
Артикул:
212140 42/6
В наличии
Характеристики

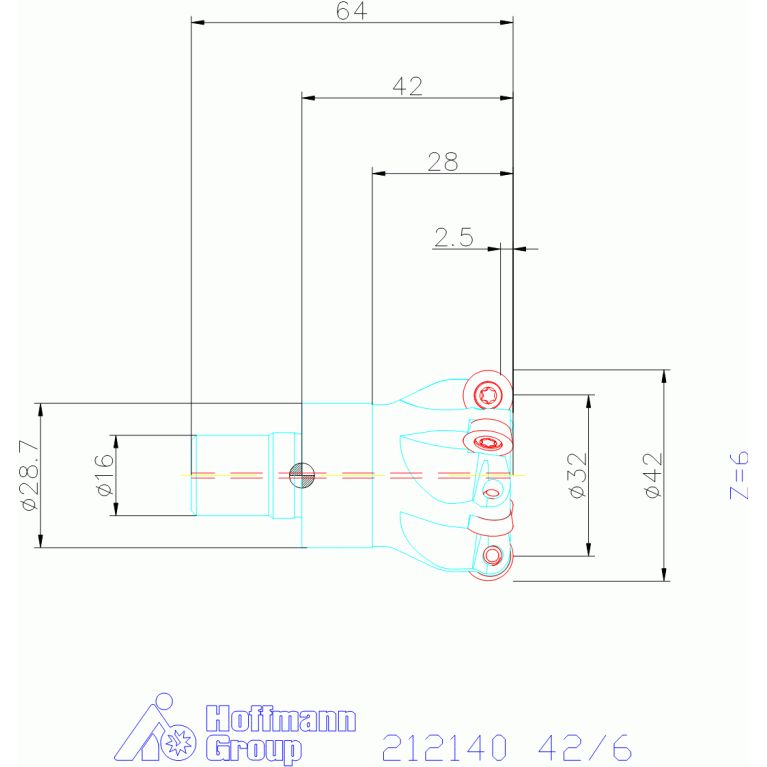

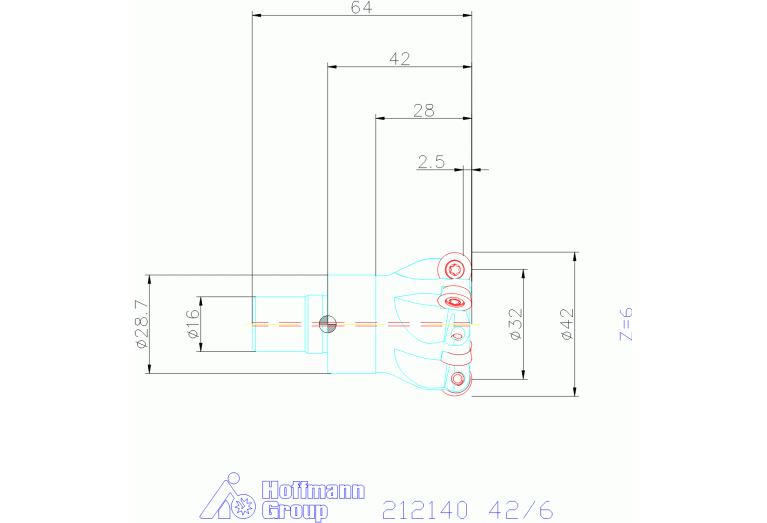

APMX Depth of cut maximum
2.5 mm
AZ Plunge depth maximum
2 mm
BD Body diameter
40 mm
CCONMS Connection count machine side
1
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
42 mm
DIN
SAD01600115
DN Neck diameter
28.7 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts

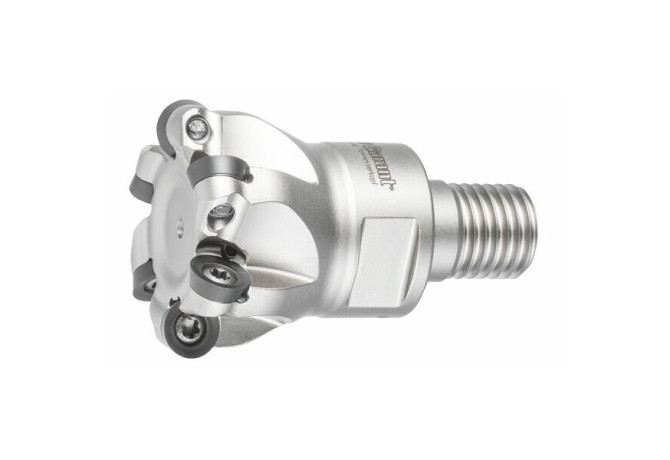

Copy milling cutter 7° positive
GAMF Rake angle radial
7 Degree
GAMP Rake angle axial
-24 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-05 - Single row rounded end mill
LH Head length
42 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600115
LPR Protruding length
42 mm
LS Shank length
22 mm
LU Usable length
2.5 mm
Name Identifying order number
212140 42/6
OAL Overall length
64 mm
RMPX Ramping angle maximum
5 Degree
THSZMS Connection thread nominal size machine side
16x2
Working process
No working processes available
WT Weight of item
0.24 kg
ZEFF Face effective cutting edge count
6
