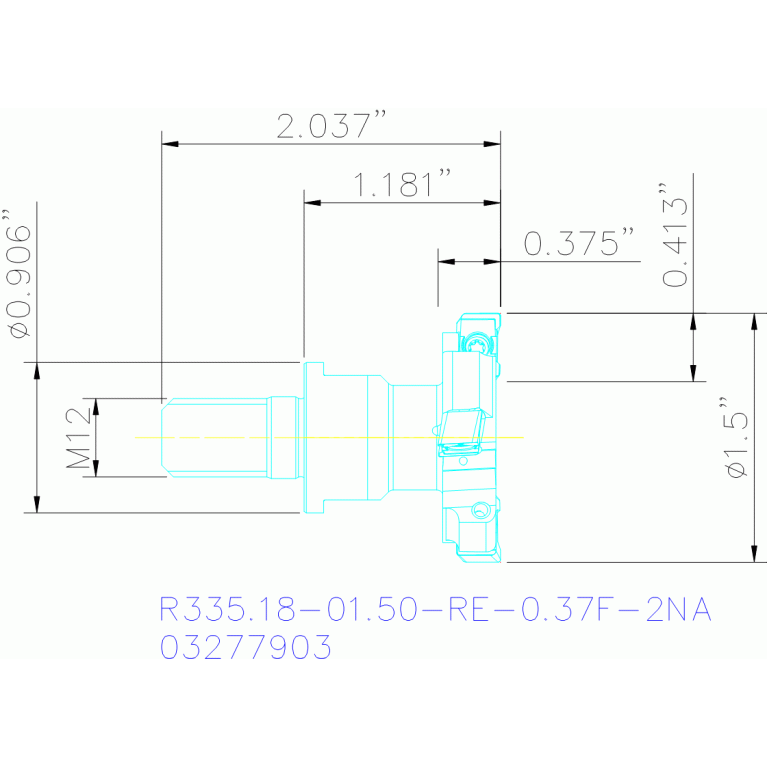

R335.18-01.50-RE-0.37F-2NA
R335.18-01.50-RE-0.37F-2NA
Артикул:
03277903
В наличии
Характеристики
APMX Depth of cut maximum
9.525 mm
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
38.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SCM01200115
FamilyProducts
R335.18-01.50-RE-0.37F-2NA
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
3 Degree
HAND Cutting direction
R - Right
ID Technical product number
03277903
Interface codes
J6 /
ISYC Subclass
307-04 - T-slot end mill
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-LN0504 3L
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SCM
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SCM01200115
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number
R335.18-01.50-RE-0.37F-2NA
RPMX Rotational speed maximum
15400 1/min
THSZMS Connection thread nominal size machine side
M12
Working process
No working processes available
WT Weight of item
0.141 kg
ZEFP Peripheral effective cutting edge count
2
