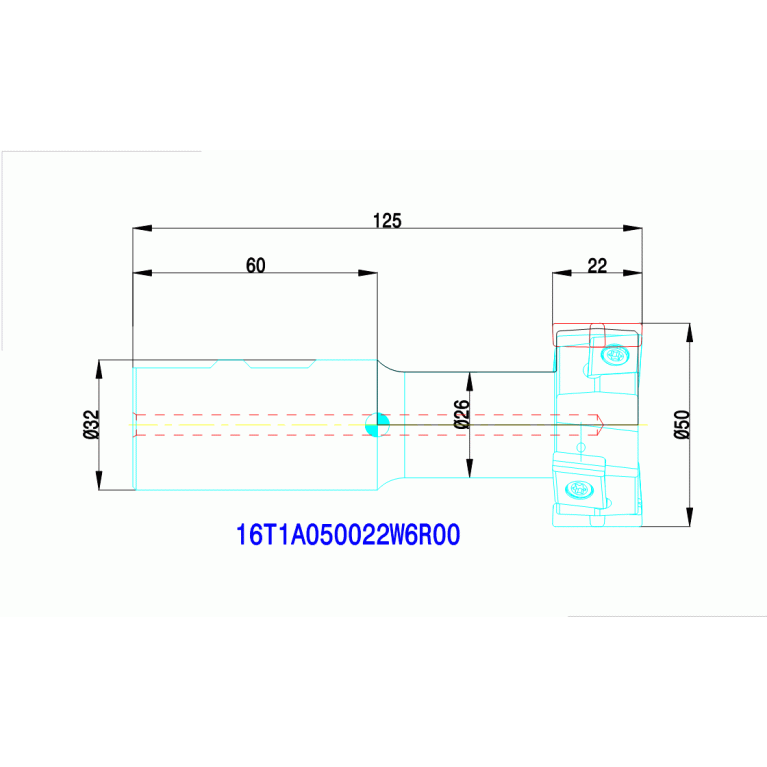

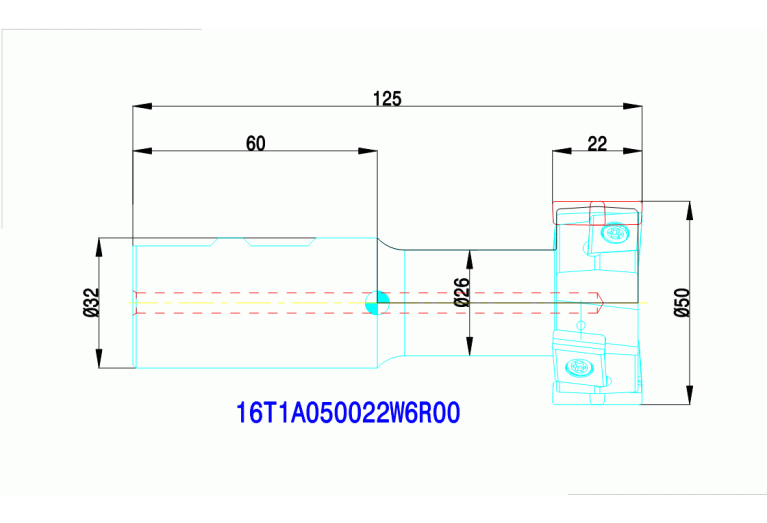

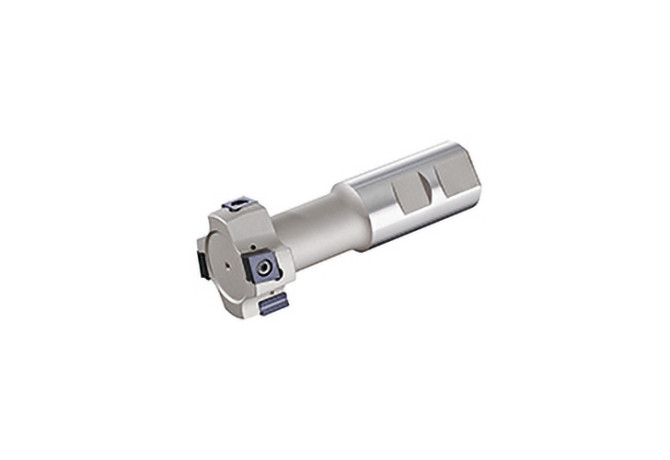

Главная Каталог продукции Toolunited 10 307-04 - T-slot end mill 16T1A050022W6R00

16T1A050022W6R00

Артикул: 5894245

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

BLDB Tool style code Position B

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

ZYL03201015

FamilyProducts

T-Slot Mill 16T1A...W

HAND Cutting direction

R - Right

ID Technical product number

5894245

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISYC Subclass

307-04 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

16T1A050022W6R00

OAL Overall length

125 mm

Working process

No working processes available

WT Weight of item

0.72 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
