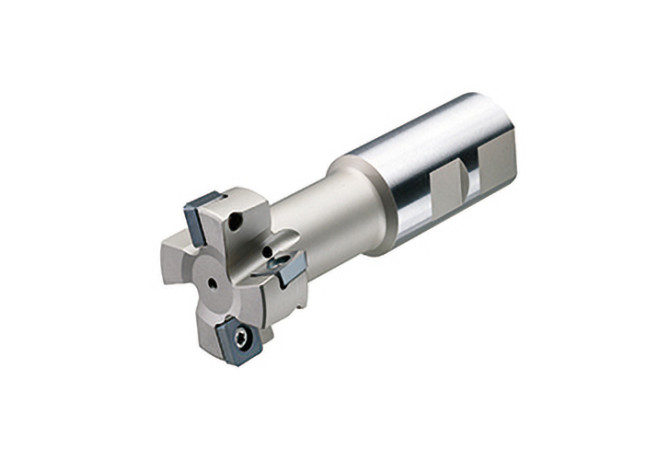

Главная Каталог продукции Toolunited 10 307-04 - T-slot end mill 15T1P058026W6R00

15T1P058026W6R00

15T1P058026W6R00 15T1P058026W6R00 15T1P058026W6R00 15T1P058026W6R00

15T1P058026W6R00

Ingersoll
Артикул: 3065231
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
58 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL03201015
FamilyProducts
T-Slot Mill 15T1 ...W
HAND Cutting direction
R - Right
ID Technical product number
3065231
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-04 - T-slot end mill
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SDES130525TN-002
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-4161
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number

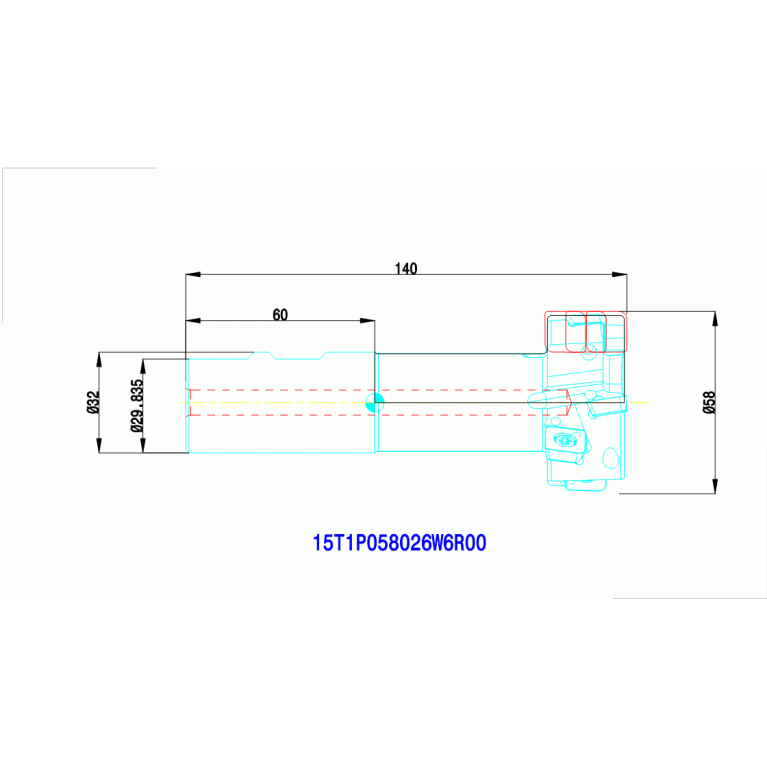

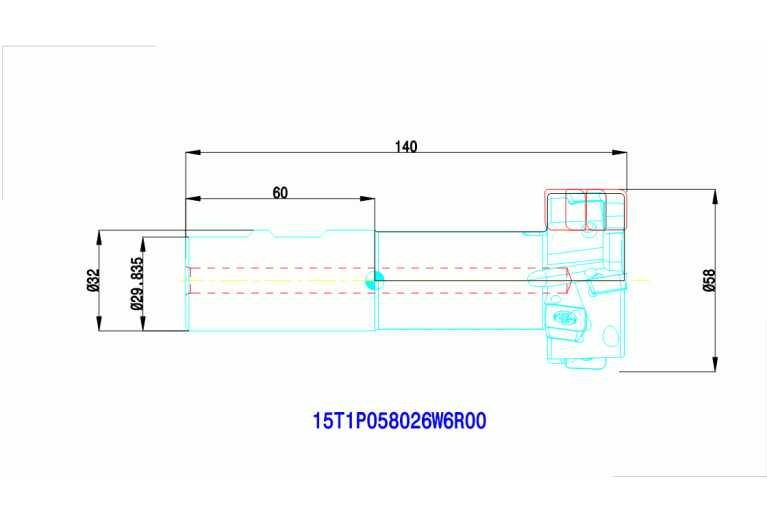

15T1P058026W6R00
OAL Overall length
140 mm
Working process
No working processes available
WT Weight of item
0.9 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
