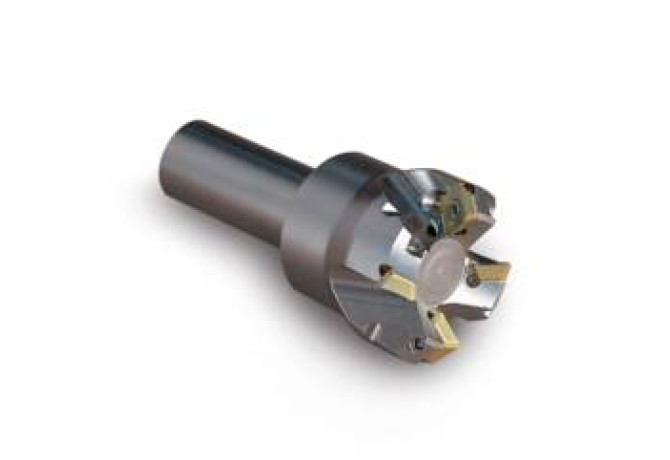

Главная Каталог продукции Toolunited 10 307-02 - Non-centre cutting single row V-groove end mill R217.53-00.75.3S-09-2A

R217.53-00.75.3S-09-2A

R217.53-00.75.3S-09-2A R217.53-00.75.3S-09-2A R217.53-00.75.3S-09-2A R217.53-00.75.3S-09-2A

R217.53-00.75.3S-09-2A

Seco
Артикул: 02422259
В наличии
В корзину
Описание
Характеристики

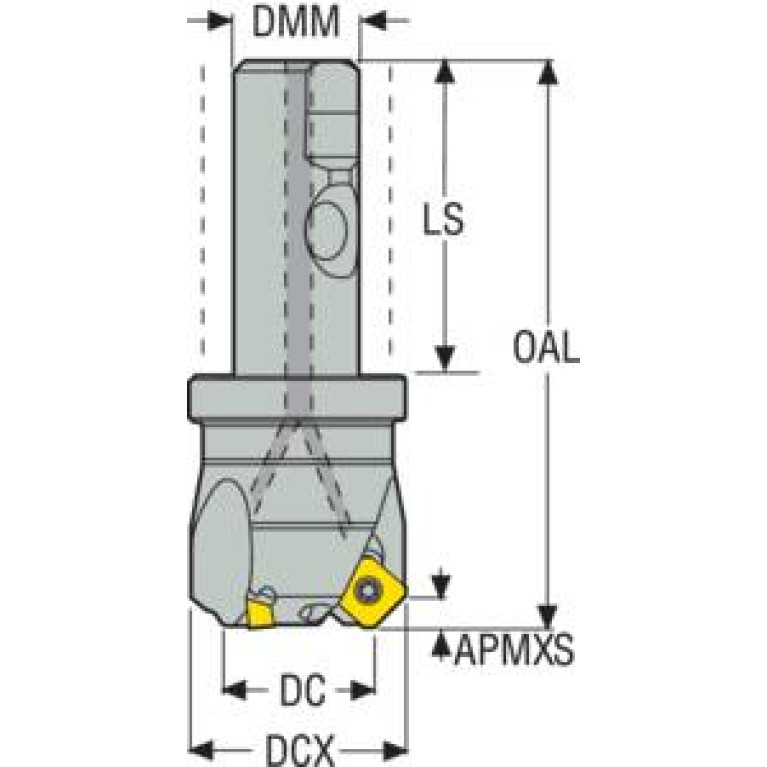

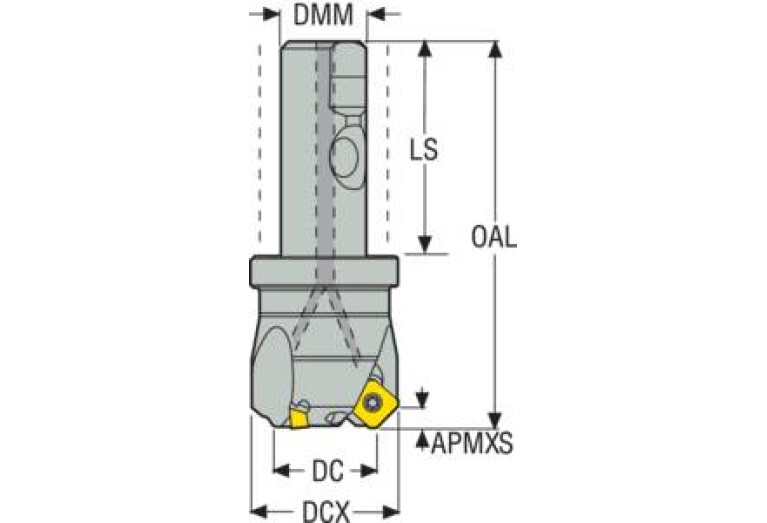

A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
26 Degree
APMX Depth of cut maximum
4.5 mm
B1A Cutting edge length Pos. A
9.525 mm
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
3.97 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
1 mm
D4A Cutting edge angle major Pos. A
45 Degree
D6A Wiper edge length Pos. A
1.5 mm

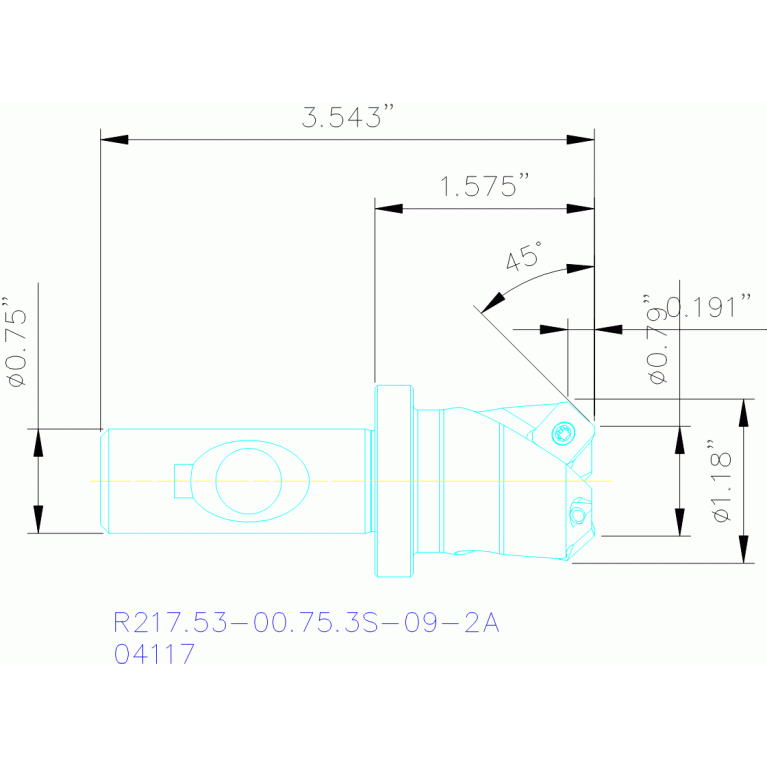

DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
30 mm
Delivery state valid from
3/14/2020
DIN
ZYL07501025
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R217.53-00.75.3S-09-2A
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
20 Degree
HAND Cutting direction
R - Right
ID Technical product number
02422259
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501025
LPR Protruding length
40 mm
LS Shank length
50 mm
Name Identifying order number
R217.53-00.75.3S-09-2A
NameAnsi Identifying order number inch alternative
R217.53-00.750-3S-09-2A
OAL Overall length
90 mm
RPMX Rotational speed maximum
25100 1/min
Working process
No working processes available
WT Weight of item
0.347 kg
ZEFP Peripheral effective cutting edge count
2
