Главная Каталог продукции Toolunited 10 307-02 - Non-centre cutting single row V-groove end mill R217.48-01.25.3S-05-4SA

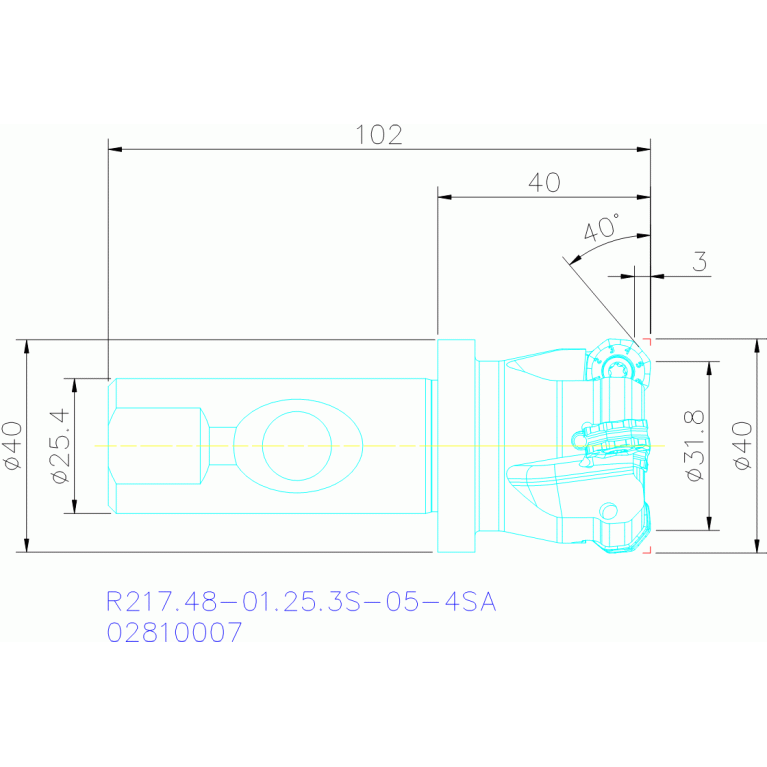

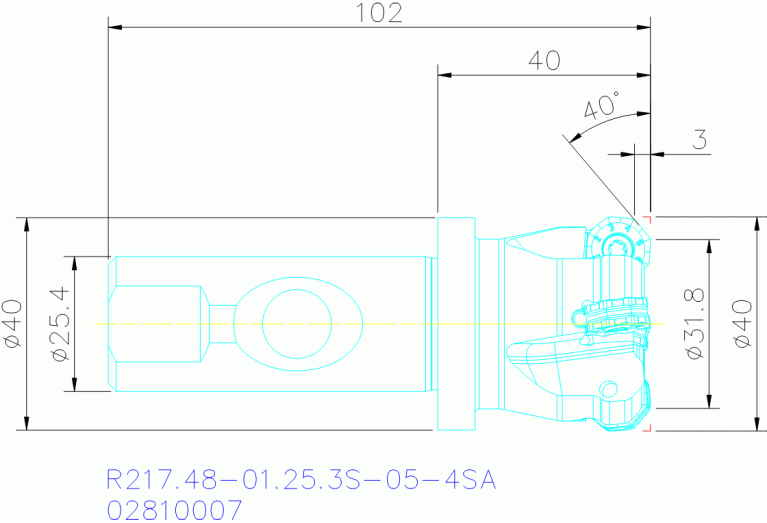

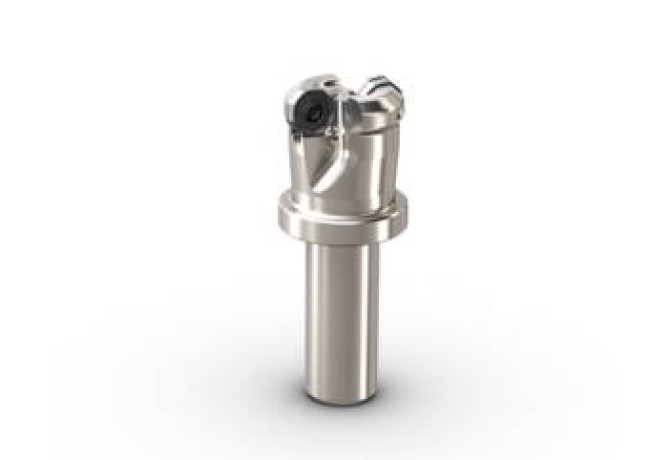

R217.48-01.25.3S-05-4SA

R217.48-01.25.3S-05-4SA R217.48-01.25.3S-05-4SA R217.48-01.25.3S-05-4SA R217.48-01.25.3S-05-4SA

R217.48-01.25.3S-05-4SA

Seco
Артикул: 02810007
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
135 Degree
A2A Clearance angle major Pos. A
0 Degree

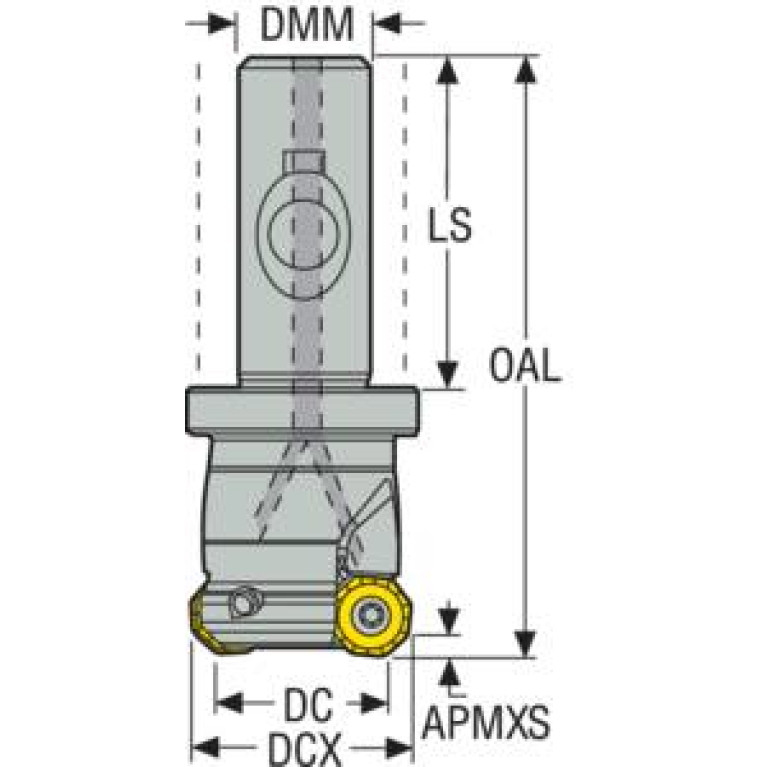

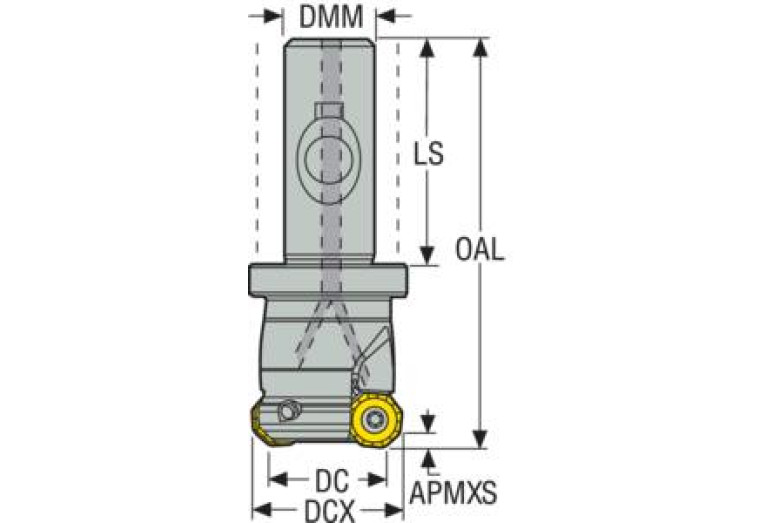

APMX Depth of cut maximum
3 mm
B1A Cutting edge length Pos. A
4.968 mm
B3A Inscribed circle diameter Pos. A
12 mm
BLDA Tool style code Position A
9
CCONMS Connection count machine side
2
CICT Cutting item count
4
COMPC Company code
SO - SECO Tools
D6A Wiper edge length Pos. A
3.2 mm
DC Cutting diameter
31.75 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
40 mm
Delivery state valid from
3/14/2020
DIN
ZYL07501425
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
R217.48-01.25.3S-05-4SA
GAMF Rake angle radial
-8 Degree
GAMP Rake angle axial
-8 Degree
HAND Cutting direction
R - Right
ID Technical product number
02810007
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL14R7500h$06
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
40 Degree
LOC-03 CCFMS Connection code form
14
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03 ISO
ZYL14R7500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501425
LPR Protruding length
40 mm
LS Shank length
50 mm
LU Usable length
33 mm
Name Identifying order number
R217.48-01.25.3S-05-4SA
NameAnsi Identifying order number inch alternative
R217.48-01.25-3S-05-4SA
OAL Overall length
90 mm
RPMX Rotational speed maximum
20400 1/min
Working process
No working processes available
WT Weight of item
0.44 kg
ZEFP Peripheral effective cutting edge count
4
