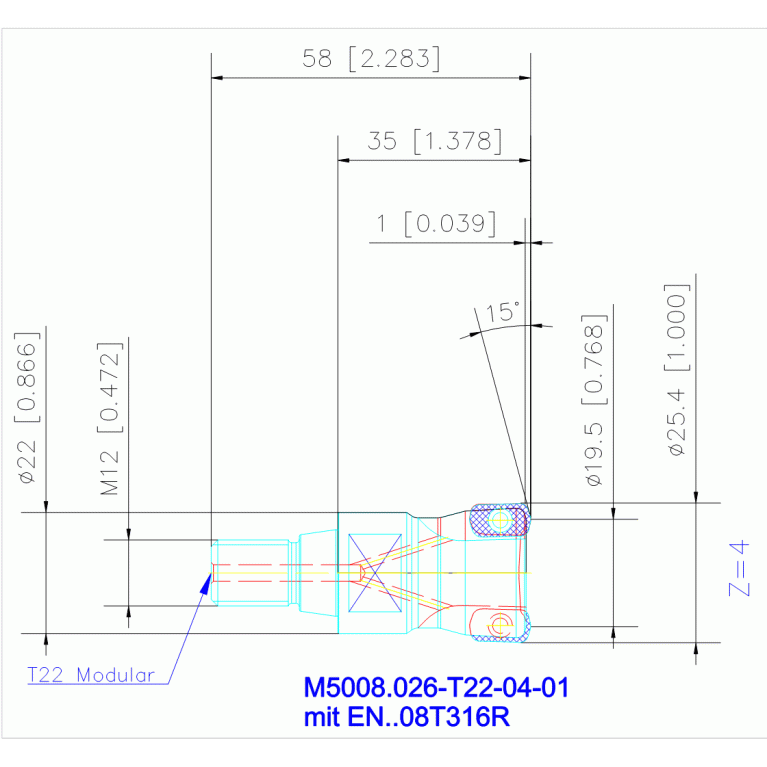

M5008.026-T22-04-01

Артикул: 7721800

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

1 mm

BD Body diameter

24.13 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

19.5 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25.4 mm

Delivery state valid from

12/1/2023

DIN

SAW02200195

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

High-feed milling cutter M5008

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

7721800

Interface codes

J6 / J61

ISO

SAW01C0220$$$$

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

15 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 ISO

SAW01C0220$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW02200195

LPR Protruding length

35 mm

LU Usable length

35 mm

Name Identifying order number

M5008.026-T22-04-01

OAL Overall length

58 mm

RMPX Ramping angle maximum

1.062 Degree

RPMX Rotational speed maximum

25900 1/min

Working process

FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.091 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
