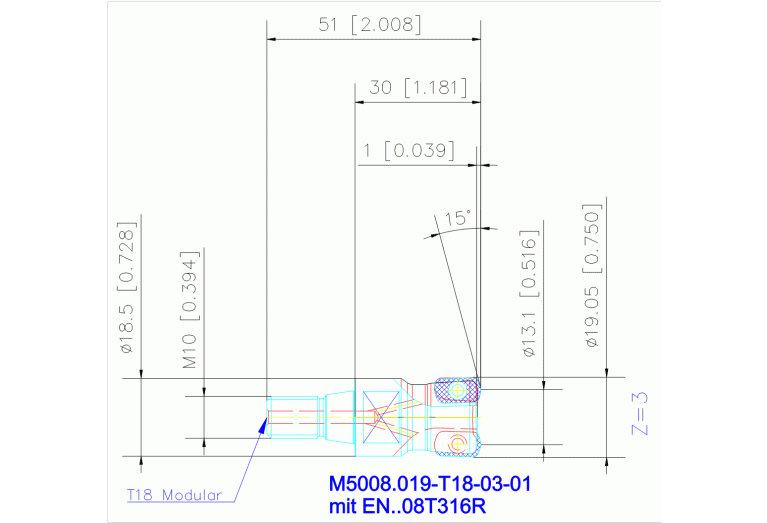

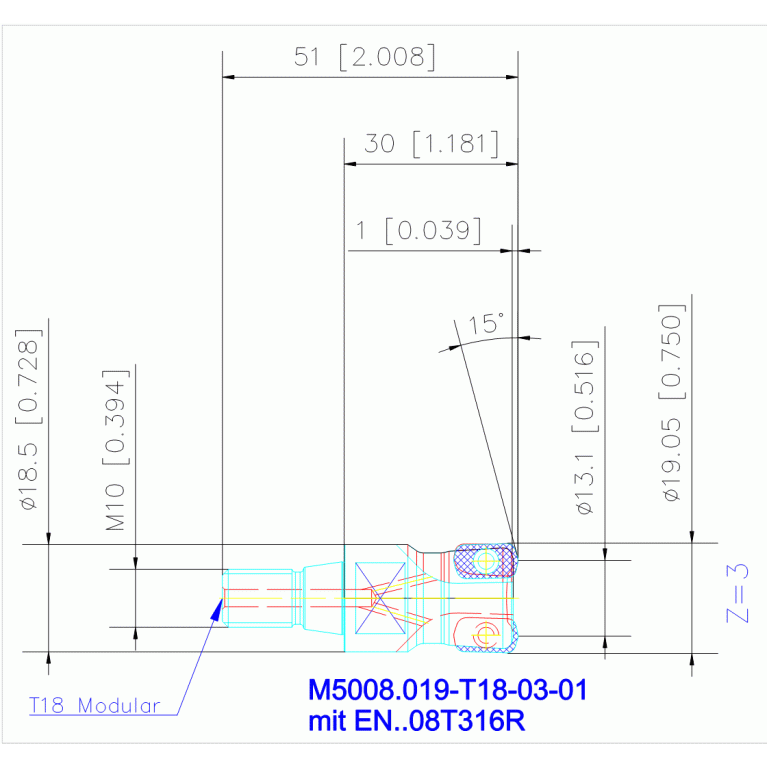

M5008.019-T18-03-01
M5008.019-T18-03-01
Артикул:
7721778
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
1 mm
BD Body diameter
17.99 mm
BLDA Tool style code Position A
3
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
13.1 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
19.05 mm
Delivery state valid from
12/1/2023
DIN
SAW01800195
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
High-feed milling cutter M5008
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
7721778
Interface codes
J6 / J61
ISO
SAW01C0180$$$$
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
15 Degree
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0180
LOC-03 DCONMS Diameter
18.5 mm
LOC-03 ISO
SAW01C0180$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW01800195
LPR Protruding length
30 mm
LU Usable length
30 mm
Name Identifying order number
M5008.019-T18-03-01
OAL Overall length
51 mm
RMPX Ramping angle maximum
1.644 Degree
RPMX Rotational speed maximum
30000 1/min
Working process
FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.045 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
