Главная Каталог продукции Toolunited 10 307-02 - Non-centre cutting single row V-groove end mill IQ845 ESY D025-03-W25-R05

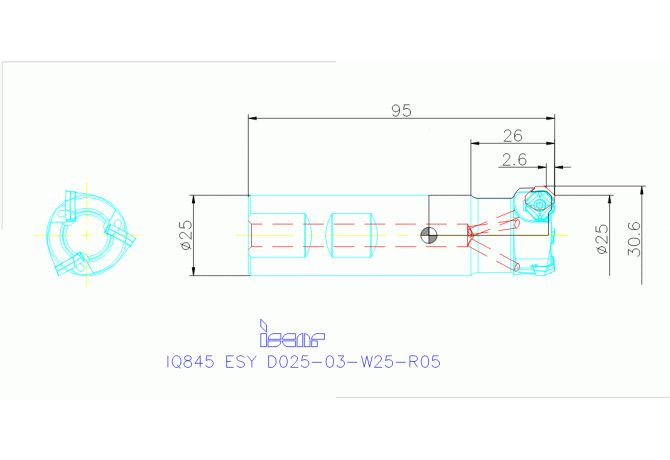

IQ845 ESY D025-03-W25-R05

Артикул: 3106674

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2.6 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

30.6 mm

DIN

ZYL02501015

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

50° Endmills Carrying Square Inserts with 8 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3106674

Interface codes

J6 / J61

ISO

ZYL10G2500h$06

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

50 Degree

LH Head length

26 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

LPR Protruding length

39 mm

Name Identifying order number

IQ845 ESY D025-03-W25-R05

OAL Overall length

95 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.32 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
