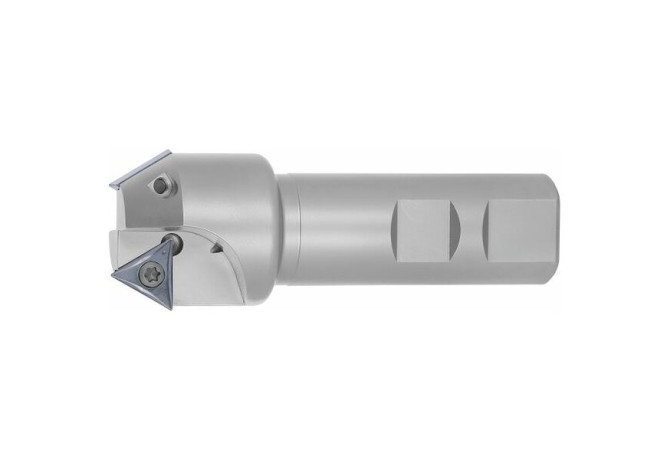

Главная Каталог продукции Toolunited 10 307-02 - Non-centre cutting single row V-groove end mill 216552 20

216552 20

216552 20 216552 20 216552 20

216552 20

Hoffmann Group
Артикул: 216552 20
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
60 Degree
A2A Clearance angle major Pos. A
7 Degree
APMX Depth of cut maximum
14 mm
BD Body diameter
33.5 mm
BLDA Tool style code Position A
1
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
35 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
20 mm
DIN
ZYL02501015
DN Neck diameter
25 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Chamfer mill 60°
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
60 Degree
LH Head length
39 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
52 mm
LS Shank length
56 mm
LU Usable length
14 mm
Name Identifying order number
216552 20
OAL Overall length
100 mm
Working process
No working processes available
WT Weight of item
0.38 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
