Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill VPX200R2002SA20L

VPX200R2002SA20L

VPX200R2002SA20L VPX200R2002SA20L VPX200R2002SA20L

VPX200R2002SA20L

Mitsubishi Materials
Артикул: 10585559
В наличии
В корзину
Описание
Характеристики

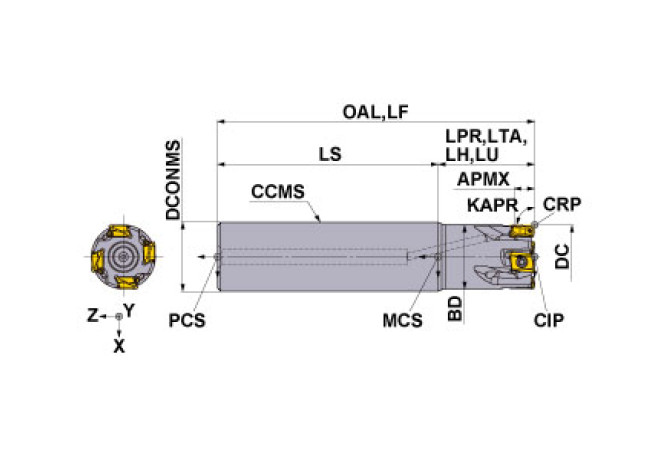

A1A Cutting edge angle major Pos. A
90 Degree
APMX Depth of cut maximum
8 mm
B1A Cutting edge length Pos. A
8.7 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
4.3 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.2 mm
D6A Wiper edge length Pos. A
1.7 mm
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL02000115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
10585559
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
150 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
LPR Protruding length
60 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
VPX200R2002SA20L
OAL Overall length
150 mm
Working process
No working processes available
WT Weight of item
0.32 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
