Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill TS HTP D21/.83-3-T12-LN06

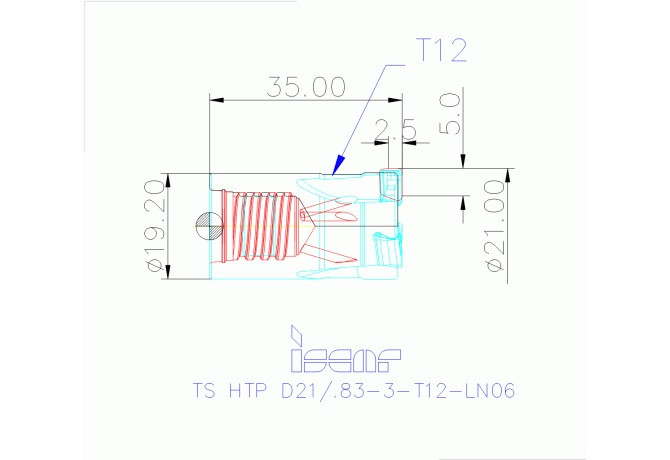

TS HTP D21/.83-3-T12-LN06

Артикул: 3181220

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2.5 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

21 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01000395

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Side Plungers with SHANK-MASTER Threaded Connection Carrying Tangentially Clamped Inserts with 4 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3181220

Interface codes

J6 / J61

ISO

SAI03C0100$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

19.2 mm

LOC-03 ISO

SAI03C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000395

Name Identifying order number

TS HTP D21/.83-3-T12-LN06

OAL Overall length

35 mm

RMPX Ramping angle maximum

0 Degree

THSZMS Connection thread nominal size machine side

T12

Working process

No working processes available

WT Weight of item

0.05 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
