Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill R217.96-2020.0-04-2A

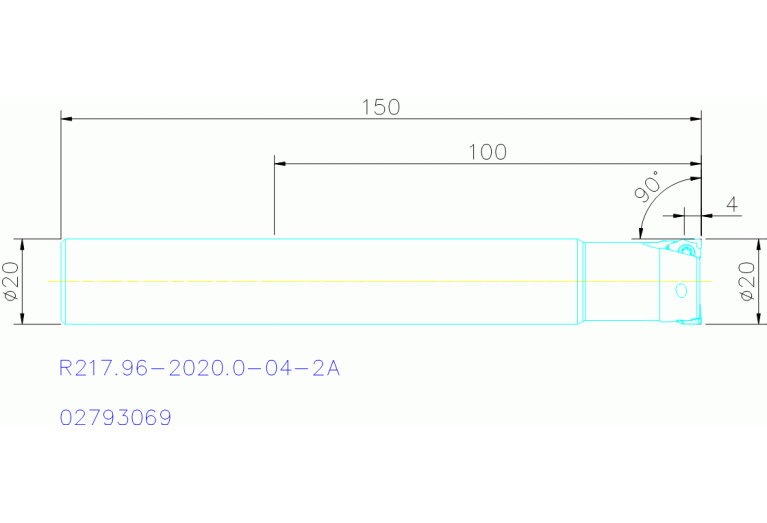

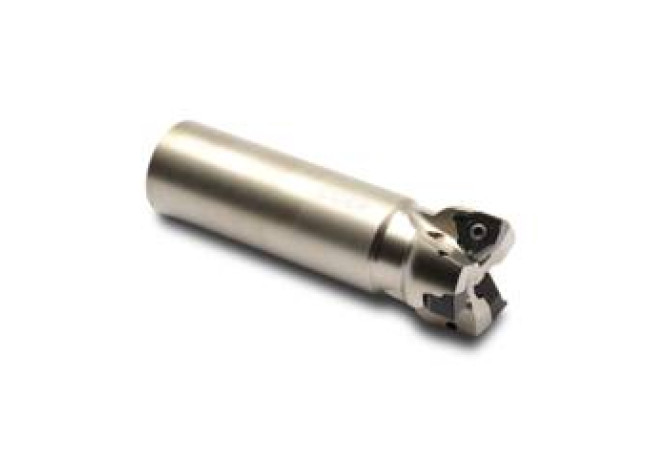

R217.96-2020.0-04-2A

R217.96-2020.0-04-2A R217.96-2020.0-04-2A R217.96-2020.0-04-2A R217.96-2020.0-04-2A

R217.96-2020.0-04-2A

SECO Tools
Артикул: 02793069
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
88 Degree
A2A Clearance angle major Pos. A
0 Degree
APMX Depth of cut maximum
4 mm
B1A Cutting edge length Pos. A
4 mm
B3A Inscribed circle diameter Pos. A
6.7 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
3.31 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
COMPC Company code
SO - SECO Tools
D6A Wiper edge length Pos. A
0.8 mm
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL02000105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R217.96-2020.0-04-2A
GAMF Rake angle radial
-18.5 Degree
GAMP Rake angle axial
-5.5 Degree
HAND Cutting direction
R - Right
ID Technical product number
02793069
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL01G2000h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
150 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 ISO
ZYL01G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000105
LPR Protruding length
100 mm
LS Shank length
121 mm
LU Usable length
29 mm
Name Identifying order number
R217.96-2020.0-04-2A
OAL Overall length
150 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
29400 1/min
Working process
No working processes available
WT Weight of item
1.805 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
