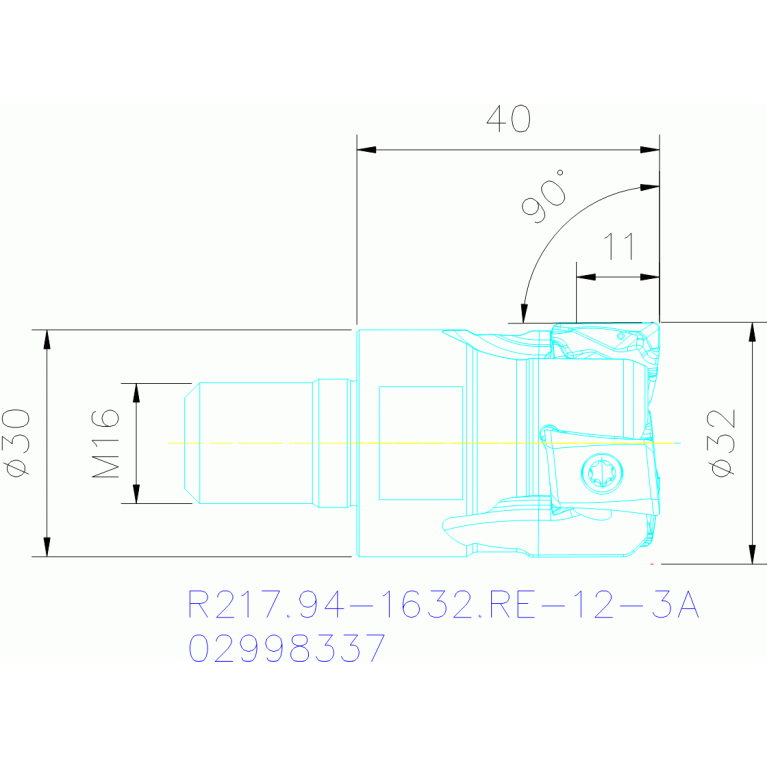

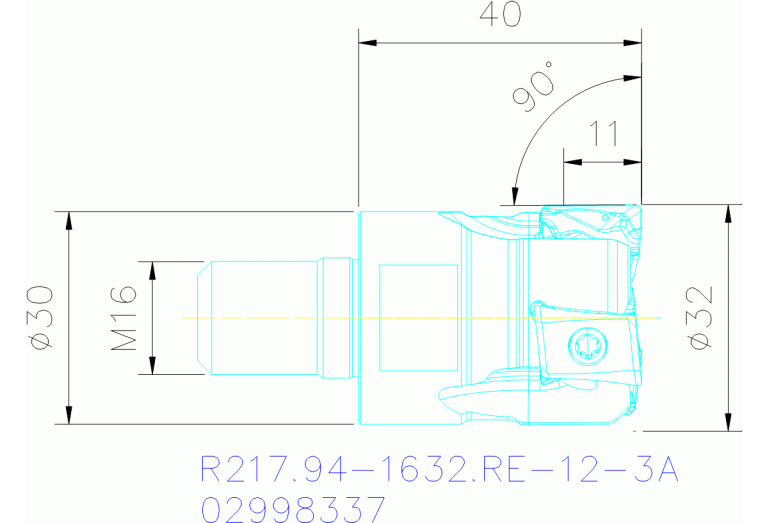

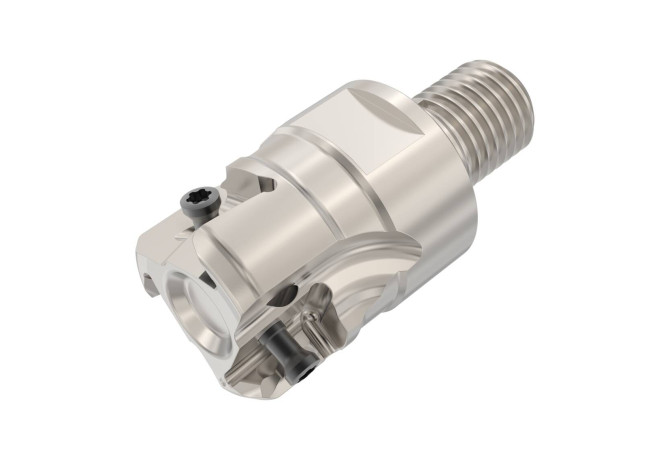

Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill R217.94-1632.RE-12-3A

R217.94-1632.RE-12-3A

Артикул: 02998337

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

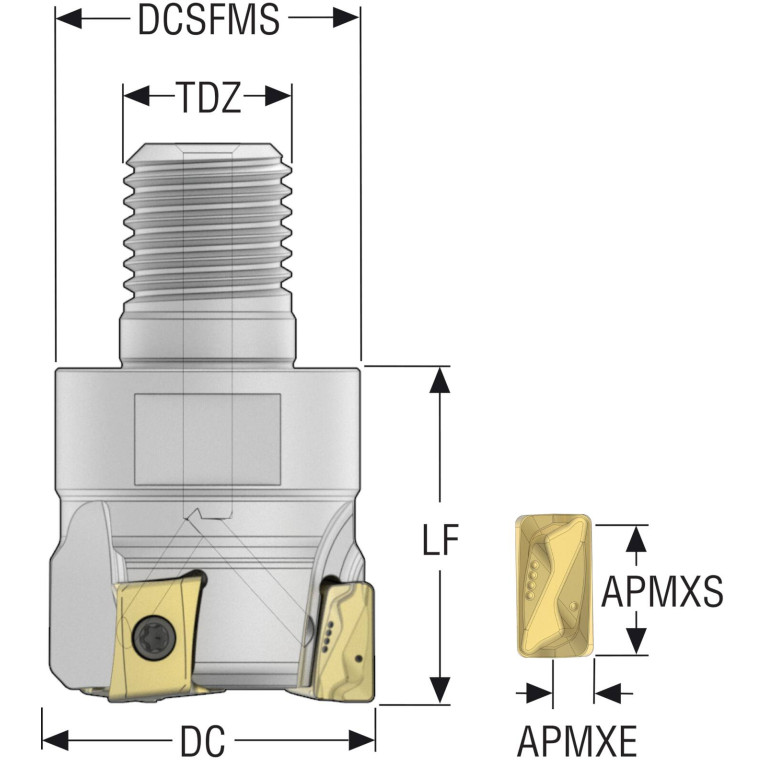

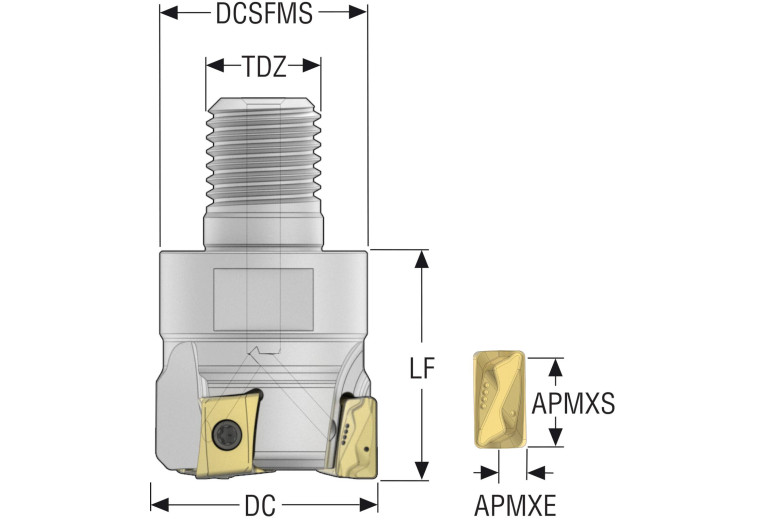

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SCM01600115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

R217.94-1632.RE-12-3A

GAMF Rake angle radial

-24 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

R - Right

ID Technical product number

02998337

Interface codes

J6 /

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SCM

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SCM01600115

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R217.94-1632.RE-12-3A

RPMX Rotational speed maximum

12400 1/min

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.199 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
