Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill R217.94-01.50-20RE-12-4A

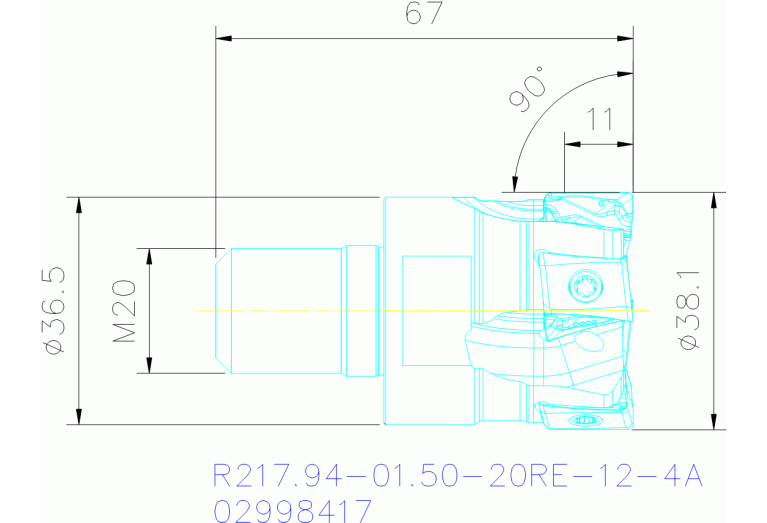

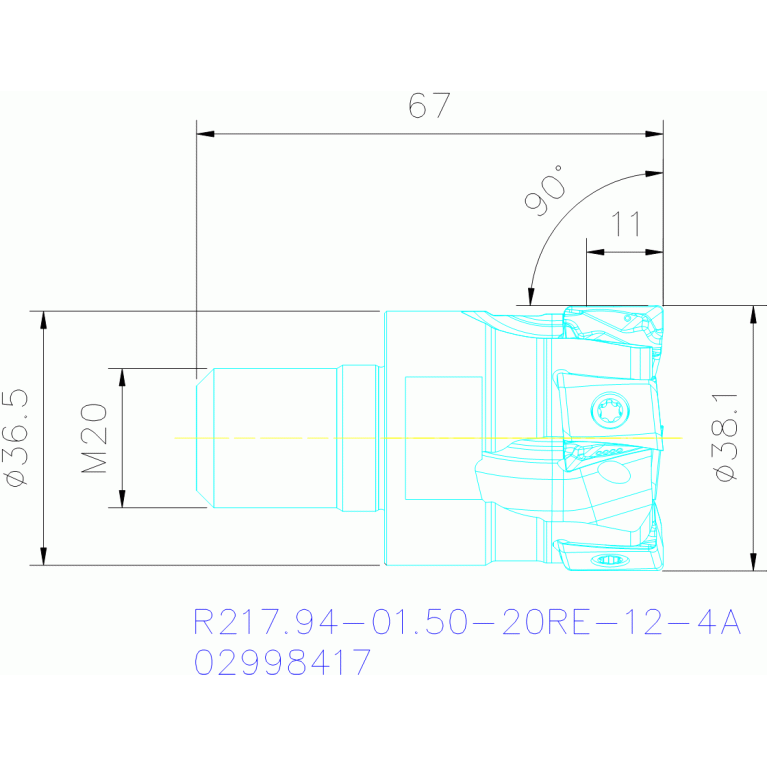

R217.94-01.50-20RE-12-4A

R217.94-01.50-20RE-12-4A R217.94-01.50-20RE-12-4A R217.94-01.50-20RE-12-4A R217.94-01.50-20RE-12-4A

R217.94-01.50-20RE-12-4A

SECO Tools
Артикул: 02998417
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
APMX Depth of cut maximum
12 mm
BLDA Tool style code Position A
4
C1A Insert thickness Pos. A
10.26 mm
CCONMS Connection count machine side
3
CICT Cutting item count
4
COMPC Company code
SO - SECO Tools
D6A Wiper edge length Pos. A
2.47 mm
DC Cutting diameter
38.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SAD02000105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
R217.94-01.50-20RE-12-4A
GAMF Rake angle radial
-22.1 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02998417
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SCM01G3650$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
SCM01G3650$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD02000105
LPR Protruding length
50 mm
LS Shank length
80 mm
LU Usable length
30 mm
Name Identifying order number
R217.94-01.50-20RE-12-4A
OAL Overall length
110 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
11300 1/min
THSZMS Connection thread nominal size machine side
M20
Working process
No working processes available
WT Weight of item
0.285 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
