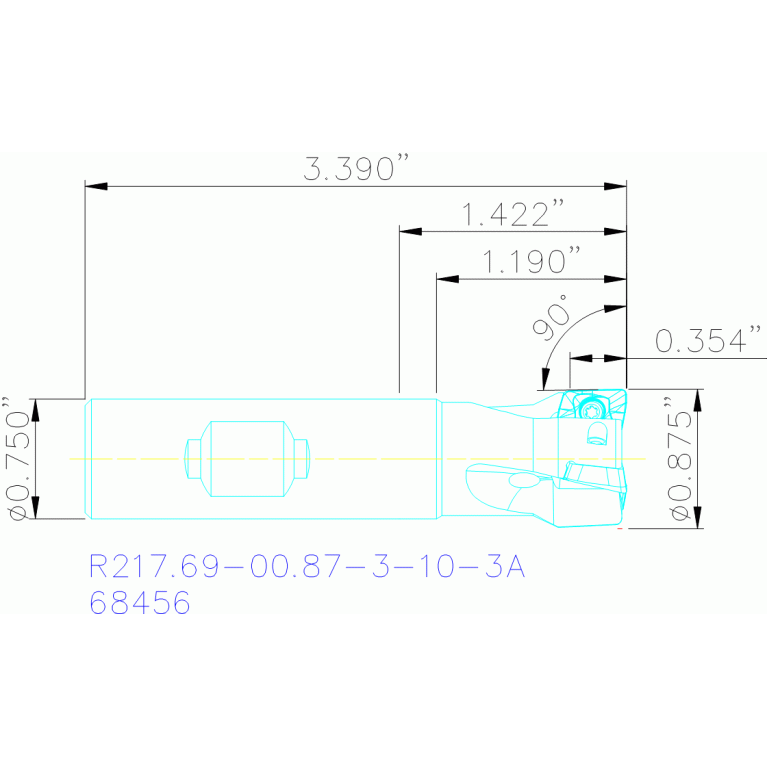

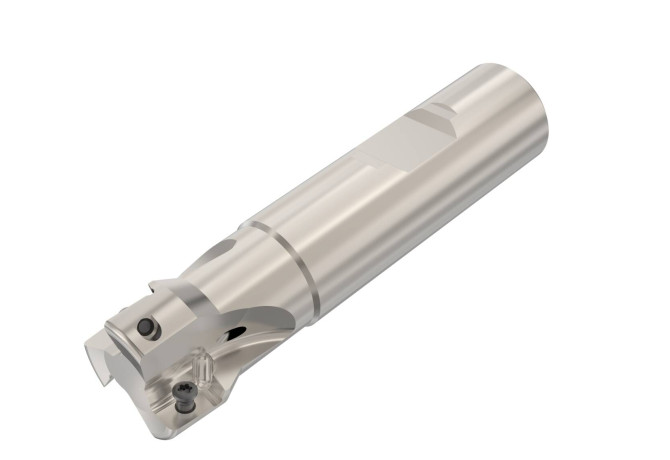

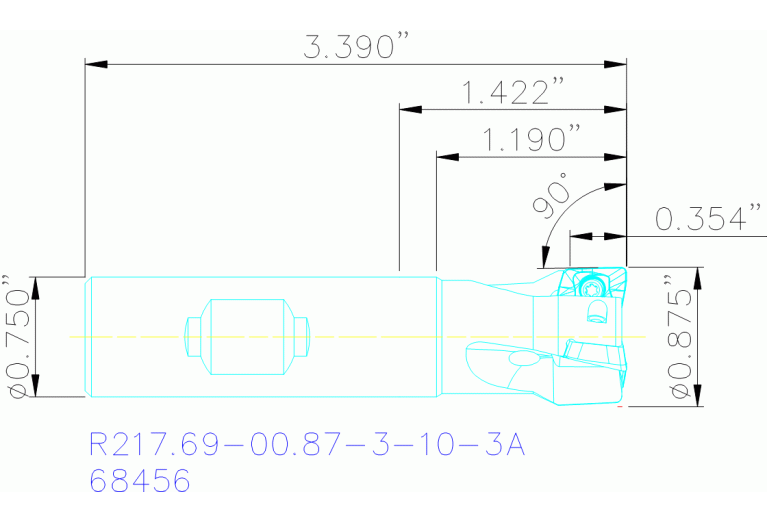

R217.69-00.87-3-10-3A
R217.69-00.87-3-10-3A
Артикул:
02772720
В наличии
Характеристики
APMX Depth of cut maximum
9 mm
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
22.225 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL07501035
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
R217.69-00.87-3-10-3A
GAMF Rake angle radial
-7.9 Degree
GAMP Rake angle axial
7.1 Degree
HAND Cutting direction
R - Right
ID Technical product number
02772720
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501035

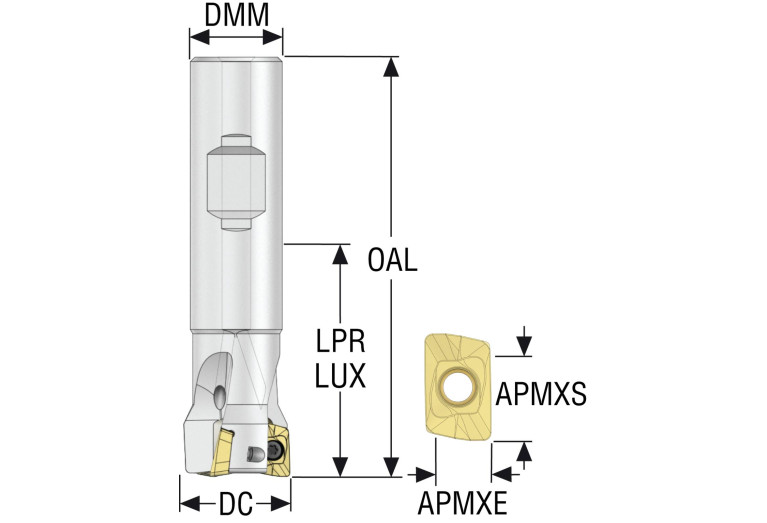

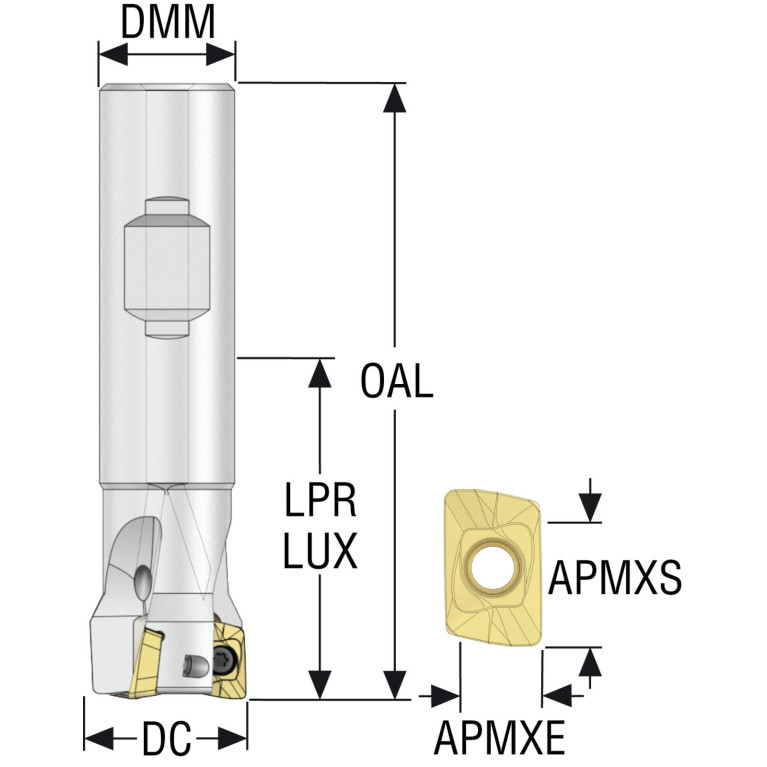

LPR Protruding length
36.1 mm
LS Shank length
55.9 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
R217.69-00.87-3-10-3A
OAL Overall length
86.1 mm
RPMX Rotational speed maximum
25000 1/min
Working process
No working processes available
WT Weight of item
0.194 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
