Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill R217.69-00.87-12RE-06-6AN

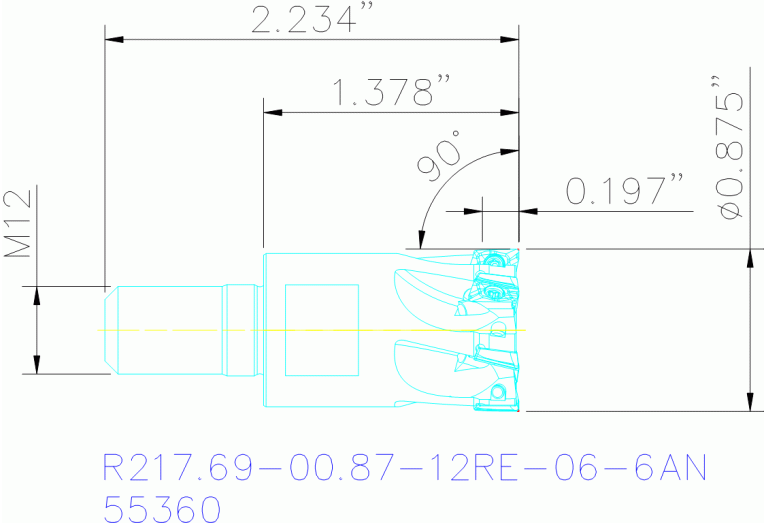

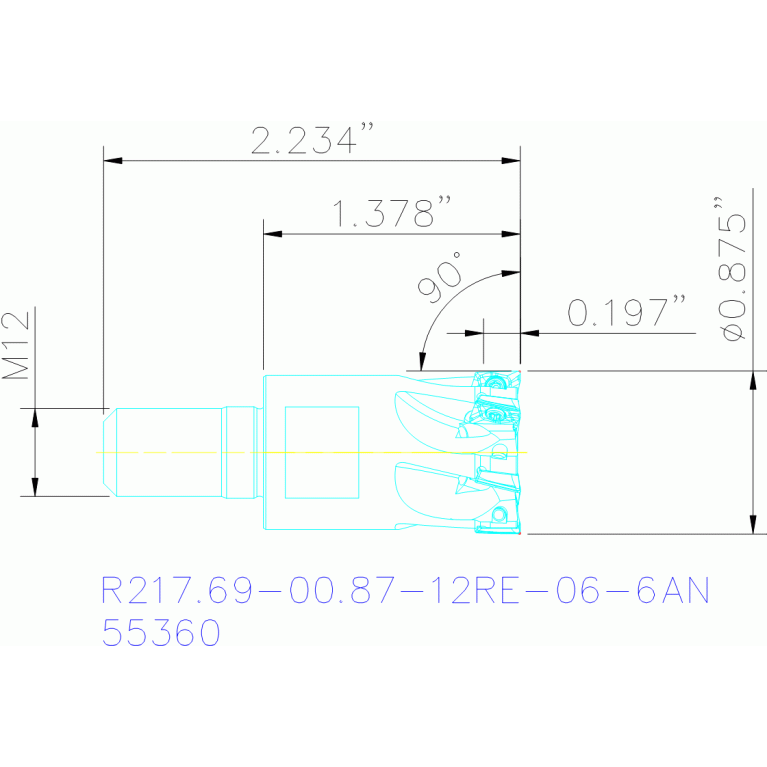

R217.69-00.87-12RE-06-6AN

R217.69-00.87-12RE-06-6AN R217.69-00.87-12RE-06-6AN R217.69-00.87-12RE-06-6AN R217.69-00.87-12RE-06-6AN

R217.69-00.87-12RE-06-6AN

SECO Tools
Артикул: 02695012
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
5 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
2.45 mm
CCONMS Connection count machine side
3
CICT Cutting item count
6
COMPC Company code
SO - SECO Tools
D6A Wiper edge length Pos. A
1.1 mm
DC Cutting diameter
22.225 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SAD01200105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
R217.69-00.87-12RE-06-6AN
GAMF Rake angle radial
-6.2 Degree
GAMP Rake angle axial
8 Degree
HAND Cutting direction
R - Right
ID Technical product number
02695012
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SCM01G2300$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 ISO
SCM01G2300$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01200105
Name Identifying order number
R217.69-00.87-12RE-06-6AN
NameAnsi Identifying order number inch alternative
R217.69-00.875-12RE-06-6AN
RMPX Ramping angle maximum
2 Degree
RPMX Rotational speed maximum
44000 1/min
THSZMS Connection thread nominal size machine side
M12
Working process
No working processes available
WT Weight of item
0.165 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
