Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill R217.69-00.50-3-10-1A

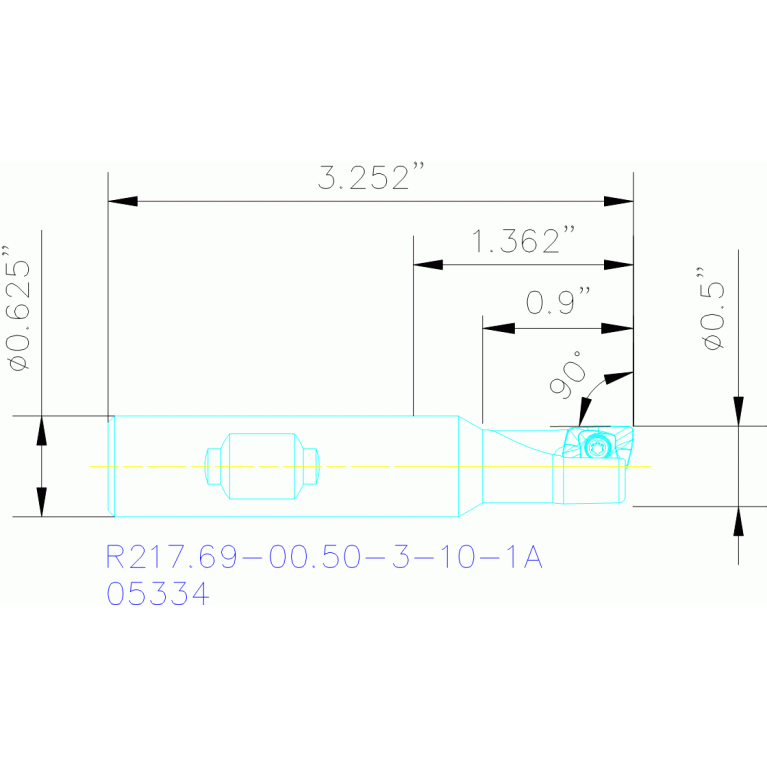

R217.69-00.50-3-10-1A

R217.69-00.50-3-10-1A R217.69-00.50-3-10-1A R217.69-00.50-3-10-1A R217.69-00.50-3-10-1A

R217.69-00.50-3-10-1A

SECO Tools
Артикул: 03058730
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
9 mm
CCONMS Connection count machine side
1
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
12.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL06251035
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
R217.69-00.50-3-10-1A
GAMF Rake angle radial
-15.1 Degree
GAMP Rake angle axial
0.4 Degree
HAND Cutting direction
R - Right
ID Technical product number
03058730
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0625
LOC-03 DCONMS Diameter
15.875 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06251035
LPR Protruding length
35 mm
LS Shank length
55.1 mm
LU Usable length
27.5 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
R217.69-00.50-3-10-1A
OAL Overall length
82.6 mm
RPMX Rotational speed maximum
33100 1/min
Working process
No working processes available
WT Weight of item
0.121 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
