Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill R217.21-01.50-20RE-R230-3A

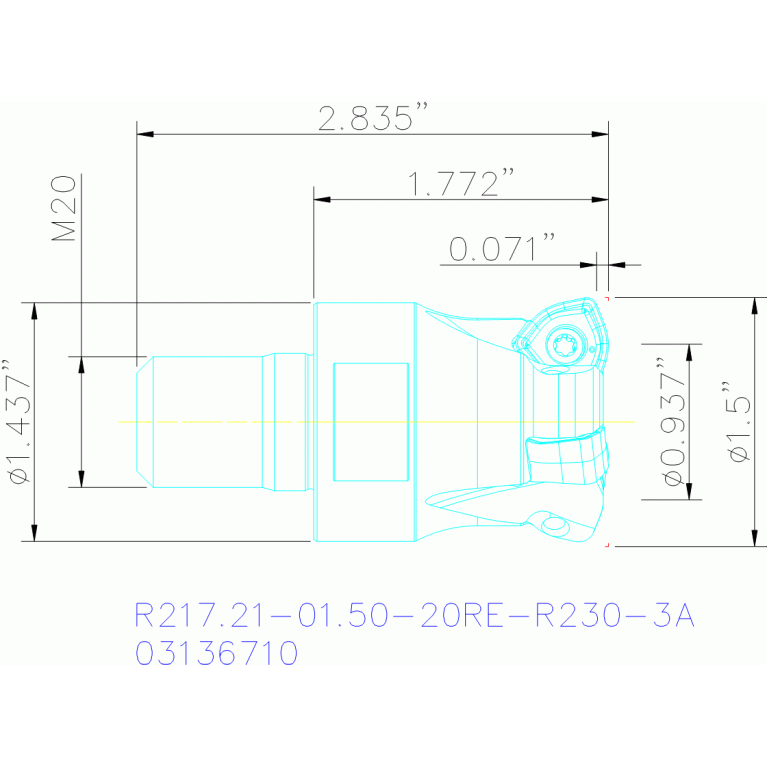

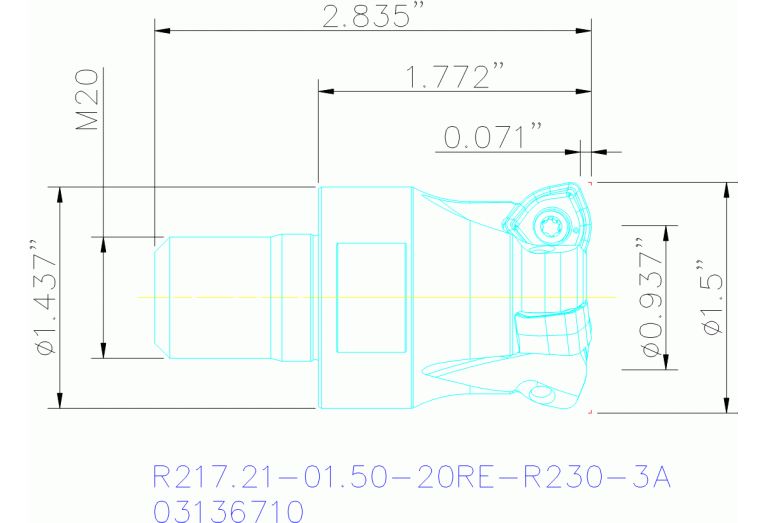

R217.21-01.50-20RE-R230-3A

R217.21-01.50-20RE-R230-3A R217.21-01.50-20RE-R230-3A R217.21-01.50-20RE-R230-3A R217.21-01.50-20RE-R230-3A

R217.21-01.50-20RE-R230-3A

SECO Tools
Артикул: 03136710
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
APMX Depth of cut maximum
1.8 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
5.95 mm
CCONMS Connection count machine side
3
CICT Cutting item count
3
COMPC Company code
SO - SECO Tools
DC Cutting diameter
23.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SAD02000105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
R217.21-01.50-20RE-R230-3A
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
-6.5 Degree
HAND Cutting direction
R - Right
ID Technical product number
03136710
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SCM01G3650$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 ISO
SCM01G3650$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD02000105
Name Identifying order number
R217.21-01.50-20RE-R230-3A
RMPX Ramping angle maximum
1.5 Degree
RPMX Rotational speed maximum
12100 1/min
THSZMS Connection thread nominal size machine side
M20
Working process
No working processes available
WT Weight of item
0.299 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
