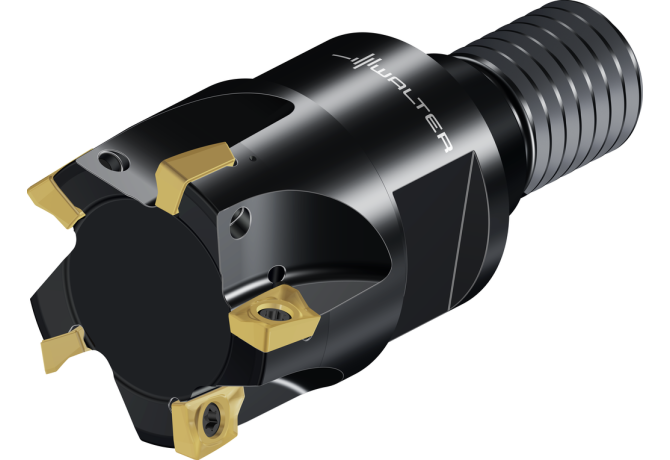

Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill M5130-016-T14-04-05

M5130-016-T14-04-05

Артикул: 7538911

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

5 mm

AZ Plunge depth maximum

0.68 mm

BD Body diameter

15.11 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAW01400195

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters M5130

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

7538911

Interface codes

J6 / J61

ISO

SAW01C0140$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0140

LOC-03 DCONMS Diameter

14.5 mm

LOC-03 ISO

SAW01C0140$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW01400195

LPR Protruding length

25 mm

LU Usable length

25 mm

Name Identifying order number

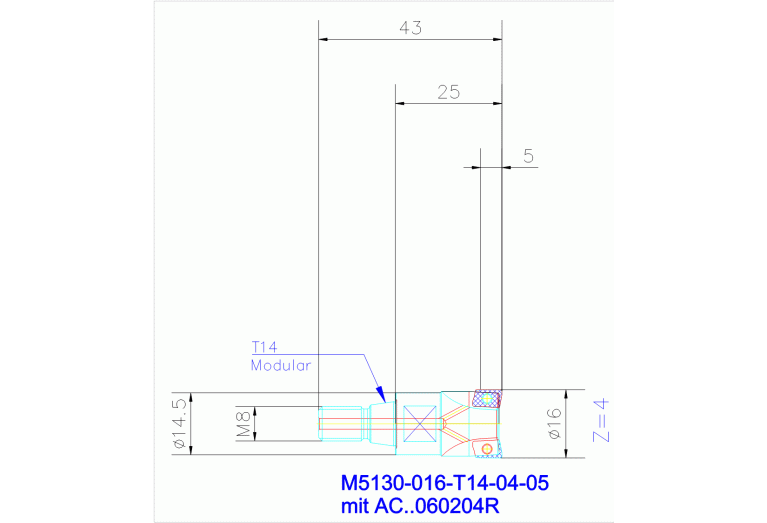

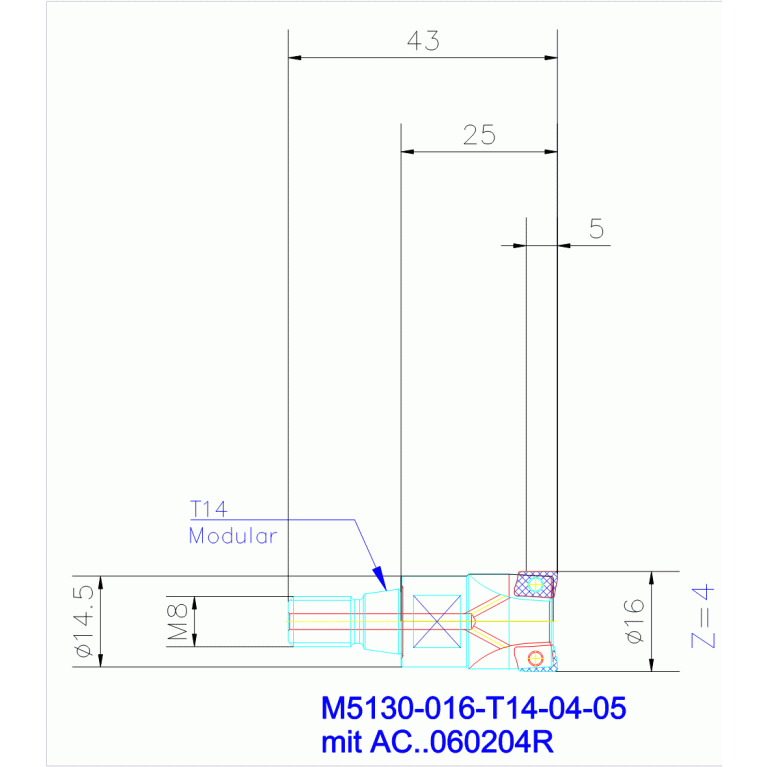

M5130-016-T14-04-05

OAL Overall length

43 mm

RMPX Ramping angle maximum

3 Degree

RPMX Rotational speed maximum

40000 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.032 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
